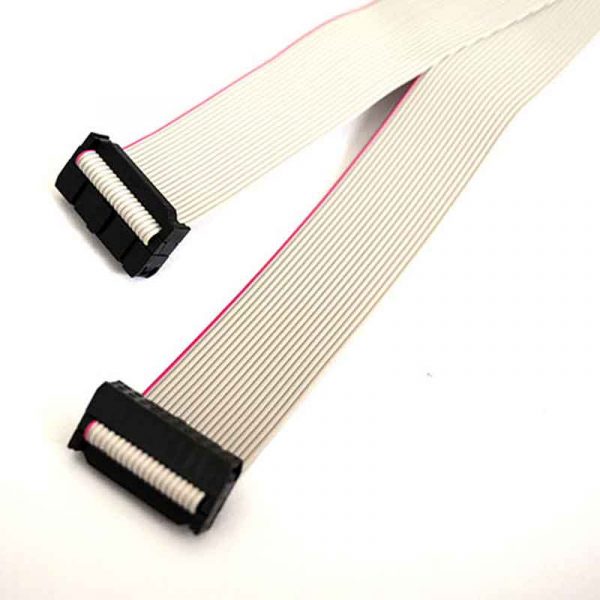

2.54mm Pitch 20 Pin IDC Flat Ribbon Cable
- Description
- Contact Supplier Now!
Description
UL2651 28AWG 2.54 mm Pitch 20 Pin IDC Flat Ribbon Cable
The 2.54mm Pitch 20 Pin IDC Flat Ribbon Cable has good appearance, without defects of plastic injection molding, metal parts may not have scratches, deformation and other defects of performance to meet the requirements.
This ribbon cable widely used in various computer equipment, machinery, electrical appliances, cars, color TV, air conditioning, LED display, DVD, VCD, and other connectors and connector.
Cable | UL2651 28AWG |
Cable Pitch | PH1.27mm |
Cable Length | 490mm |
Color | grey with red edge |
Connector Type | IDC Connector |
Connector A | IDC 20 pin Female |
Connector B | IDC 20 pin Female |
Pin Pitch | 2.54mm pitch |
Material | Plastic, Electric Parts |
Rated Current | 1Amp |
Maximum voltage | AC 500V / 1Minute |
Insulation resistance | 1000mΩ |
Contact resistance | 15mΩ |
Operating Temperature | -40 ° C ~ + 105 ° C |
Sample | Available |
Package | PE bags |
Service | OEM ODM Accepted |
Production Process
Application
Our Capacity
What kinds of ribbon cable We Can custom:
- PH2.54 IDC Cable Series
- PH2.0 IDC Cable Series
- PH1.27 DIC Cable Series
- Red IDC DIP Cable Series
- IDC Connector Series
Custom ribbon cable connectors Capacity:
- UL 2651 certified gray cable 2-64 P: PH 1.27 mm, 1.0 mm, 0.635 mm;
- IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
- DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
- IDC Gray Cable: Customize any length specification, sample production
- Rainbow Flat Cable
More RAST 2.5 connectors
3518-1 02 | 3518-1 03 | 3518-1 04 | 3518-1 05 | 3518-2 02 |
3518-2 03 | 3518-2 04 | 3518-2 05 | 3518-2 06 | 3518-2 07 |
3518-2 08 | 3518-2 09 | 3518-2 10 | 3518-4 02 | 3518-4 03 |
3518-4 04 | 3518-4 05 | 351800 02 | 351800 03 | 351800 04 |
351800 05 | 351800 06 |
How to Order
Talk with us for your ribbon cable demands – You provide drawing – Confirm drawing – Provide quotation – Discuss samples needs -Sample approved -Payment for your order – Mass product AFTER sample approved – Testing before send out – Delivery
