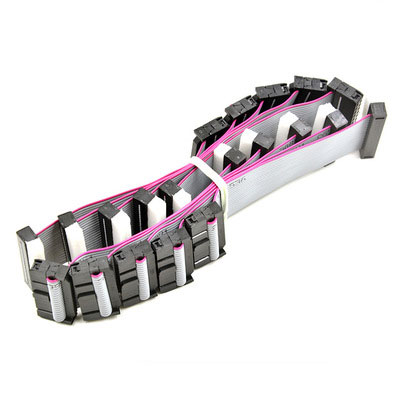

2.54mm Pitch Gray IDC Flat Ribbon Cable
- Description
- Contact Supplier Now!
Description
2.54mm Pitch Connector 20 Pin Gray IDC Flat Ribbon Cable UL2651 28AWG
The 2.54mm pitch Flat Ribbon Cable separates easily for clean terminations with standard wire connectors, jacks and pins. And the ribbon cable saves space and time on circuit interconnecting assemblies.
Cable | UL2651 28AWG |
Cable Length | custom length |
Conductor Dimension | 7/0.12MM |
Cable Color | Gray with red edge |
Connector Type | IDC male to female connector |
Connector Pitch | 2.54mm pitch |
Connector Pin | 20 pin |
Contact Resistance | 15mΩ |
Operating Temperature | ≤-40 ° C ~ + 105 ° C |
Testing | 100% tested before shipment |
Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
Delivery Day | 3-15 working days |
Service | OEM and ODM |
Production Process
Test
Application
The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, box cabling, etc.
Our Capacity
Custom Ribbon Cable Types:
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors:
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
Why Choose Us
More RAST 5 connectors, pitch 5.0 mm
3673 03 | 3673 04 | 3673 05 | 3673 06 | 3673 07 |
3673 08 | 3673 09 | 3673 10 | 3673 11 | 3673 12 |
3673 13 | 3673 14 | 3673 15 | 3673 16 | 3673 17 |
3673 18 | 3673 19 | 3673 20 | 3673 21 | 3673 22 |
3673 23 | 3673 24 | 3673 25 | 3673 26 | 3673 27 |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
