60 Pin GPIO Rainbow Ribbon Cable UL2651

60 Pin GPIO Rainbow Ribbon Cable UL2651

Description

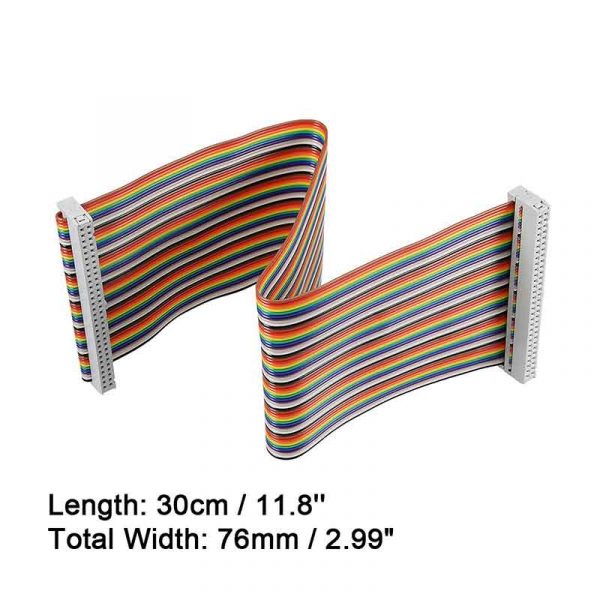

IDC 60 Pins Wire Flat Multicolored Flexible Rainbow Ribbon Cable 30cm 2.54mm Pitch

This 2.54mm Pitch 60 Pin 60 Way female to female IDC Flat Rainbow Ribbon Cable 30cm features one IDC (60 pin, Motherboard Header) Female connector and IDC (60 pin, Motherboard Header) Female connector.

The Cable is widely used in electrical appliances, printer, industrial equipment,  gaming equipment, medical equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, electronic box cabling, etc.

Cable UL2651 28AWG or custom
Cable Pitch PH1.27MM (Other: 0.635MM, 1.0MM, 2.0MM, 2.54MM)
Copper wire Conductor 7/0.12MM(Other general  7/0.08MM, 7/0.09MM, 7/0.1MM, 7/0.16MM, 7/0.2MM 7 of 7-strand copper wire)
Jacket color Rainbow
Connector 60 Pin 2.54mm Pitch IDC Female Connector
Conductor diameter 0.12 ± 0.005mm
Conductor Elongation 18% ↑
Withstand Voltage 2KV 10mA /
Conductor resistance ≤237 ohms / RM ↓
Operating temperature 15mΩ
Operating Temperature -40 °C ~ + 105 °C
Insulation Jacket Environmental PVC
Service OEM ODM Accepted

60 Pin GPIO Rainbow Ribbon Cable UL2651

60 Pin GPIO Rainbow Ribbon Cable UL2651

Production Process

60 Pin GPIO Rainbow Ribbon Cable UL2651



Application

60 Pin GPIO Rainbow Ribbon Cable UL2651

Our Capacity

At ECOCABLES, Custom ribbon cable assemblies can include:

  • Custom Flat ribbon cable,
  • Discrete wire with custom twists
  • Jacketed and shielded
  • High flex & High speed,
  • Color-coded
  • Custom Split wires
  • Materials other than PVC

Custom ribbon cable connectors Capacity

  • UL 2651 certified gray cable 2-64 P: PH 1.27 mm, 1.0 mm, 0.635 mm;
  • IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
  • DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
  • IDC Gray Cable: Customize any length specification, sample production
  • Rainbow Flat Cable



More AMP DUOPLUG Power Female Connectors Fully Loaded

1394918-2

1-1394918-2 2-1394918-2 2 1534415-2

1-1534415-2

2-1534415-2

3-1534415-2 1740533-2 1-1740533-2

2-1740533-2

1394918-3

1-1394918-3 2-1394918-3 1534415-3

1-1534415-3

1-1534415-3

1740533-3 1-1740533-3 1740924-3

1394918-4



How to Order

Send us your Customized Request– We Quote for you — Creat our Drawings — Send Sample to you — Mass Production
