Flat Cable 16 Pin IDC Flat Ribbon Cable
- Description
- Contact Supplier Now!
Description

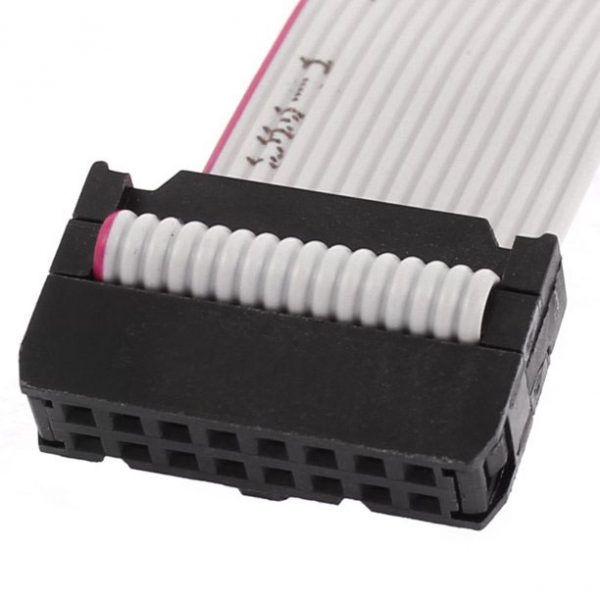

Flat Cable 16 Pin IDC Flat Ribbon Cable
The applications of the Flat Cable 16 Pin flat ribbon cable span numerous electronic devices other than computers. Some of which include printers, floppy drives, CD drives, hard drives, and more. The flat ribbon cable assembly is mostly useful in connecting two components in a compartment or device.
The ribbon cable are small, flat, and flexible, which makes them best fit for areas with limited space or compartment. They can bend or fold to fit into tight areas. Also, custom projects with power inlets will need a significant level of flexible cables.
Specifications
| Cable | UL2651 28AWG |
| Cable Pitch | PH1.27MM |
| Total Length | 30cm or custom length |
| Jacket | PVC |
| Color | Gray with red side |
| Connector Type | IDC female to female connector |
| Connector Row | 2 row |
| Pin Number | 16 pin connector |
| IDC Connector Pitch | 2.54mm pitch connector |
| Main Materials | Plastic |
| Withstand Voltage | 300V |
| Contact Resistance | 15mΩ |
| Temperature | 105 Celsius |
| Application | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More IDC Cable-to-Board Connector System
65823-001LF | 65823-025LF | 65823-027LF | 65823-033LF |
65823-037LF | 65823-039LF | 65823-043LF | 65823-045LF |
| 65823-047LF | 65823-049LF | 65823-055LF | 65823-057LF |
65823-067LF | 65823-069LF | 65823-070LF | 65823-073LF |
| 65823-075LF | 65823-079LF | 65823-081LF | 65823-082LF |
65823-083LF | 65823-085LF | 65823-087LF | 65823-091LF |
65823-093LF | 65823-103LF | 65823-140LF | 65823-145LF |
65823-183LF | 65823-187LF | 65823-210LF | 65823-212LF |
65823-213LF | 65823-217LF | 65823-218LF | 65823-222LF |
| 65823-238LF | 65823-239LF | 65823-275LF | 65823-300LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
