Description

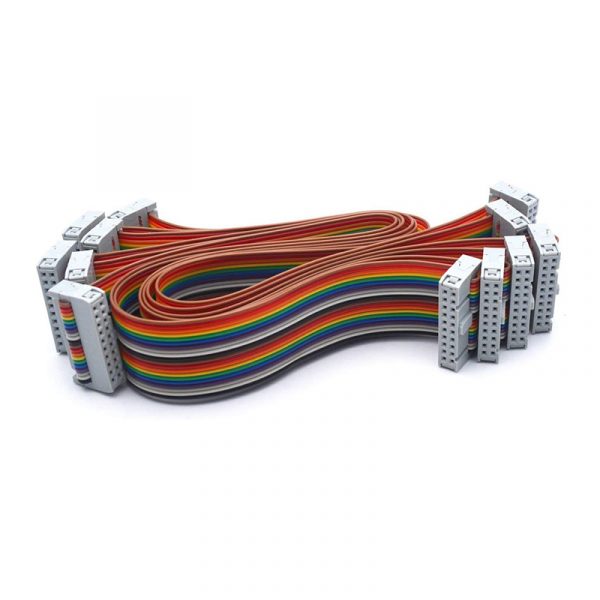

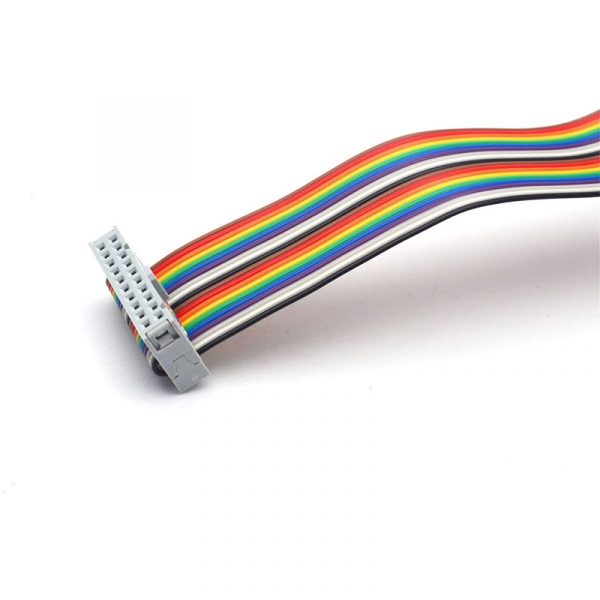

20 Pin 2.54mm Pitch IDC Wire Flat Rainbow Ribbon Cable
The 2.54MM Pitch 20 Pin Rainbow Ribbon Cable saves space and time on circuit interconnecting assemblies. The Conductor ribbon cable separate easily for clean terminations with standard wire connectors, jacks and pins.
IDC Connector flat Ribbon cable, Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, suitable for most Atmel AVR jtag debuggers, in-system programmers, isp download, etc.
20Pin 20Way/ Female to Female, compatible with 2.54mm spacing pin headers.
| Cable | UL2651 28AWG cable or custom Cable |
| Cable Pitch | PH1.27MM |
| Copper wire Conductor | 7/0.12MM(Other general 7/0.08MM, 7/0.09MM, 7/0.1MM, 7/0.16MM, 7/0.2MM 7 of 7-strand copper wire) |
| Jacket color | Rainbow |
| Connector | 20 Pin 2.54mm Pitch IDC Female to Female Connector |
| Conductor diameter | 0.12 ± 0.005mm |
| Conductor Elongation | 18% ↑ |
| Withstand Voltage | 2KV 10mA / |
| Conductor resistance | ≤237 ohms / RM ↓ |
| Operating temperature | 15mΩ |
| Operating Temperature | -40 °C ~ + 105 °C |
| Insulation Jacket | Environmental PVC 45P (RoHS) 8058 Grey |
| Service | OEM ODM Accepted |
Production Process
Application
Our Capacity
At ECOCABLES, Custom ribbon cable assemblies can include:
- Custom Flat ribbon cable,
- Discrete wire with custom twists
- Jacketed and shielded
- High flex & High speed,
- Color-coded
- Custom Split wires
- Materials other than PVC
Custom ribbon cable connectors Capacity：
- UL 2651 certified gray cable 2-64 P: PH 1.27 mm, 1.0 mm, 0.635 mm；
- IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
- DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
- IDC Gray Cable: Customize any length specification, sample production
- Rainbow Flat Cable
More AMP DUOPLUG 2.5 Female Connectors Fully Loaded
284865-8 | 284930-8 | 284932-8 | 3-829868-8 | 1-1355006-9 |
1-1355181-9 | 1-966194-9 | 284865-9 | 284932-9 | 3-829868-9 |
1-1355006-0 | 1-1355181-0 | 1-284865-0 | 1-284932-0 | 1-966194-0 |
2-284865-0 | 1-284930-1 | 1-284932-1 | 1-966195-1 | 1-1355182-2 |
1-284865-2 | 1-966195-2 | 2-284865-2 | 3-829869-3 | 4-284932-3 |
3-829869-4 | 1-966195-5 | 1-966195-6 | 3-829869-6 |
How to Order
Send us your Customized Request– We Quote for you — Creat our Drawings — Send Sample to you — Mass Production
