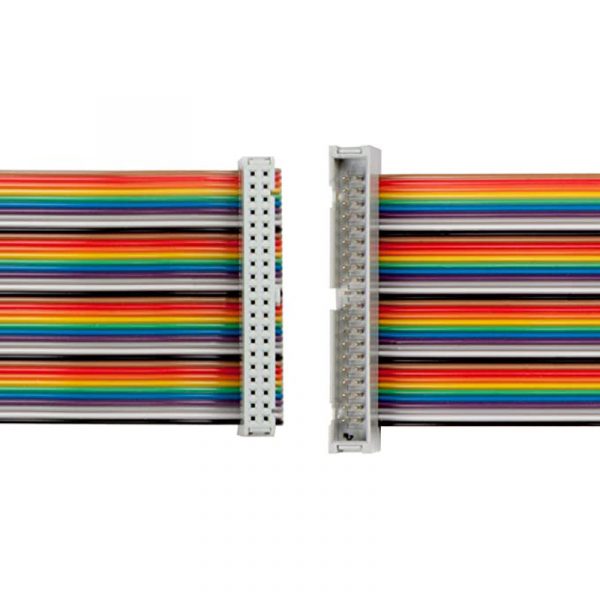

Raspberry Pi 3 GPIO Cable 40 Way Ribbon Cable
- Description
- Contact Supplier Now!
Description
2.54MM Pitch 40 Pin Raspberry Pi 3 GPIO Cable 40 Way Ribbon Cable UL2651 28awg
The UL2651 28AWG 2.54MM pitch 40 way 40 pin Raspberry Pi 3 Gpio Cable is widely used in electrical appliances, printer, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, video project devices, DVD players, backlights panel, car LCD panels, LCD TV panels, LED displays, etc.
Good appearance, plastic parts must not have injection defects, etc.
Metal parts must not have scratches, deformations, etc.
On-off performance meets regulatory requirements
| Cable | UL2651 28AWG or custom cable |
| Cable Pitch | PH1.27MM (Other: 0.635MM, 1.0MM, 2.0MM, 2.54MM) |
| Conductor Dimension | 7/0.12MM(Other general 7/0.08MM, 7/0.09MM, 7/0.1MM, 7/0.16MM, 7/0.2MM 7 of 7-strand copper wire) |
| Jacket Color | Rainbow |
| Connector | 40 Pin 2.54mm pitch IDC female connector |
| Conductor Diameter | 0.12 ± 0.005mm |
| Conductor Elongation | 18% ↑ |
| Withstand Voltage | 2KV 10mA / |
| Conductor Resistance | ≤237 ohms / RM ↓ |
| Contact Resistance | 15mΩ |
| Operating Temperature | -40 °C ~ + 105 °C |
| Insulation Jacket | Environmental PVC 45P (RoHS) 8058 Grey |
| Service | OEM and ODM |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More IDC Cable-to-Board Connector System
75867-307LF | 75867-308LF | 75867-310LF | 75867-310LF | 75867-314LF |
75869-101LF | 75869-101RLF | 75869-102LF | 75869-103LF | 75869-104LF |
75869-104RLF | 75869-105LF | 75869-105RLF | 75869-106LF | 75869-107LF |
75869-108LF | 75869-109LF | 75869-110LF | 75869-114LF | 75869-118LF |
75869-119LF | 75869-119LF | 75869-131LF | 75869-132LF | 75869-132LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
