16 Pin IDC Flat Rainbow Ribbon Cable
- Description
- Contact Supplier Now!
Description

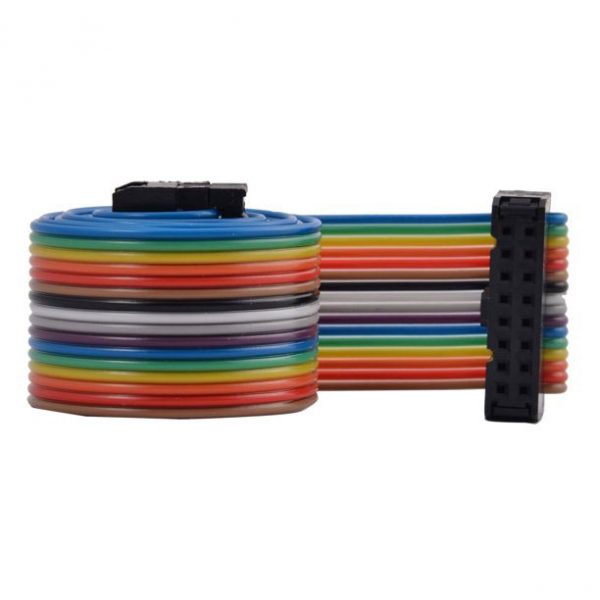

F/F 66cm 16-Pin IDC Flat Rainbow Ribbon Cable Line Connector Multicolor
The rainbow ribbon cable is constructed with 28 AWG (7/36) tinned copper. Each conductor is first extruded with SR-PVC and then all conductors are pulled in parallel and extruded in clear PVC. No lamination tapes that can impede IDC termination are used. Color code for this cable is brown, red, orange, yellow, green, blue, violet, gray, white, black and repeat.
The rainbow ribbon cable separate easily for clean terminations with standard wire connectors, jacks and pins.
Resists acid, alkalis, flame, moisture, oil, solvents and .
Can used for PCB project, PC motherboard etc. allow you plug and unplug easily for prototyping.
Specifications
| Cable Type | UL2651 28awg |
| Total Length | 66cm/26Ft” |
| Total Width | 20mm/0.79″ |
| Each Width | 0.9mm/0.05″ |
| Color | Multicolor |
| Connector Type | 16 pin IDC |
| Connector 1 | 16-pin IDC female |
| Connector 2 | 16-pin IDC female |
| Material | Plastic |
| Assembled Product Weight | 0.06 lb |
| Contact Resistance | 15mΩ |
| Temperature | 105C |
| Sample | Available |
| Test | 100% testing inspection |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More Minitek127® 1.27mm Wire/Cable-to-Board Connector System
20021521-00020T1LF | 20021521-00020T4LF | 20021521-00026D4LF | 20021521-00030D4LF |
20021521-00030D8LF | 20021521-00050T1LF | 20021611-00006T1LF | 20021611-00006T4LF |
| 20021611-00008T1LF | 20021611-00010T1LF | 20021611-00010T4LF | 20021611-00012T4LF |
20021611-00014T1LF | 20021611-00014T4LF | 20021611-00016T1LF | 20021611-00016T4LF |
| 20021611-00020T1LF | 20021611-00020T4LF | 20021611-00026T4LF | 20021611-00040T1LF |
20021611-00050T1LF | 20021611-00060T1LF | 20021611-00064T1LF | 20021612-00010T1LF |
20021612-00012T4LF | 20021612-00014T1LF | 20021612-00014T4LF | 20021612-00016T4LF |
20021612-00020T1LF | 20021612-00020T4LF | 20021612-00026T4LF | 20021612-00030T1LF |
20021612-00040T1LF | 20021612-00050T4LF | 20021621-00010D1LF | 20021621-00014T4LF |
| 20021621-00016D4LF | 20021621-00020D1LF | 20021621-00020D4LF | 20021621-00020T4LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
