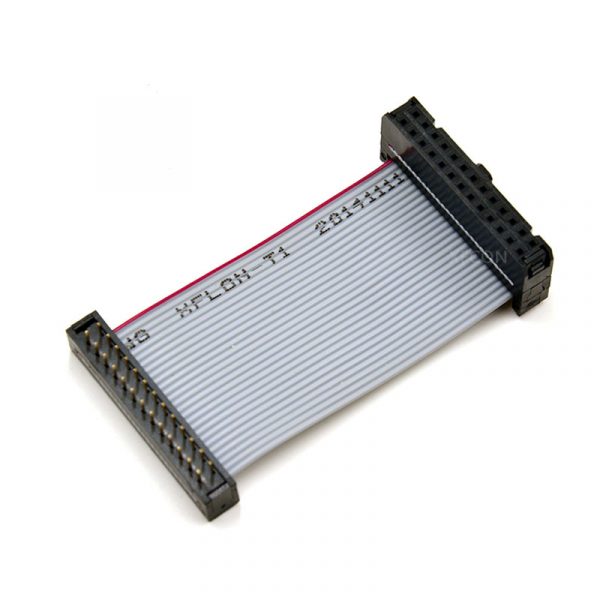

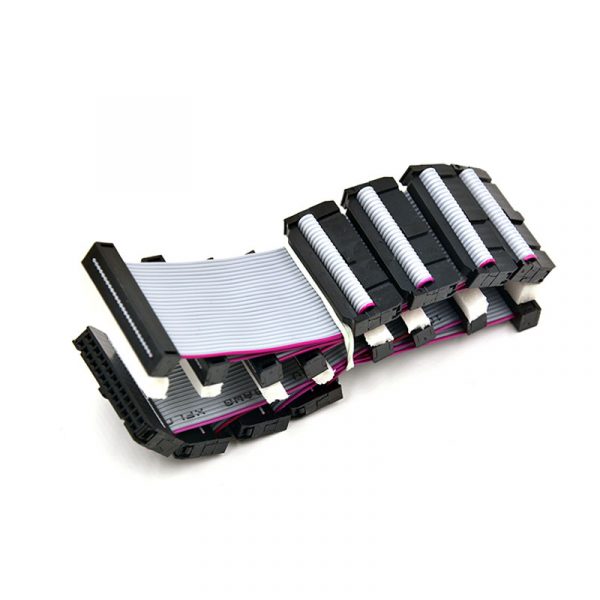

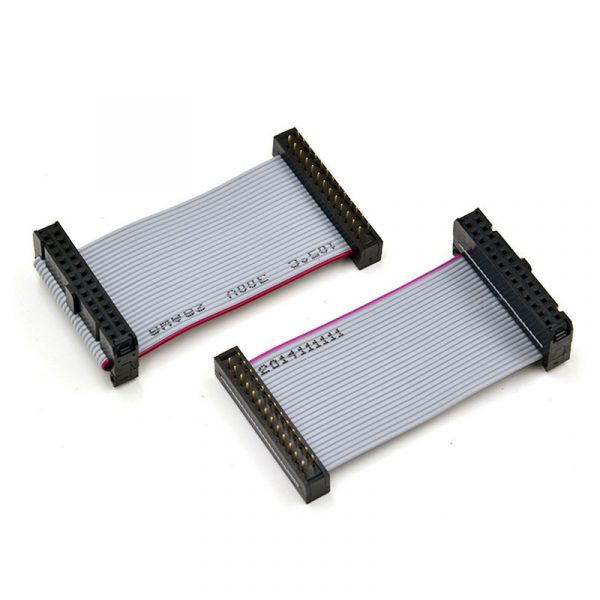

2.54mm Pitch Gray IDC Ribbon Cable 26 Pin

2.54mm Pitch Gray IDC Ribbon Cable 26 Pin

Description

2.54mm Pitch Connector 26 Pin Gray Flat IDC Ribbon Cable UL2651 28AWG

The 2.54mm pitch Ribbon Cable separates easily for clean terminations with standard wire connectors, jacks and pins. And the ribbon cable saves space and time on circuit interconnecting assemblies.

CableUL2651 28AWG
Cable LengthAccording to the customers’ requirements
Conductor Dimension7/0.12MM
Cable ColorGray with red edge
Connector TypeIDC male to female connector
Connector Pitch2.54mm pitch
Connector Pin26 Pin
Contact Pesistance15mΩ
Operating Temperature≤-40 ° C ~ + 105 ° C
Testing100% tested before shipment
CertificationUL/VDE/CCC/CE/ROHS/SGS/REACH
Delivery Day3-15 working days
ServiceOEM and ODM

2.54mm Pitch Gray IDC Ribbon Cable 26 Pin



Production Process

2.54mm Pitch Gray IDC Ribbon Cable 26 Pin2.54mm Pitch Gray IDC Ribbon Cable 26 Pin



Test

2.54mm Pitch Gray IDC Ribbon Cable 26 Pin

Application

The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, video project devices, DVD players, backlights panel, car LCD panels, LCD TV panels, LED displays, box cabling, etc.

2.54mm Pitch Gray IDC Ribbon Cable 26 Pin

Our Capacity

Custom Ribbon Cable Types

● PH2.54 IDC Cable Series

● PH2.0 IDC Cable Series

● PH1.27 IDC Cable Series

● Gray/Rainbow/Red/Yellow IDC DIP Cable Series

● … …



Custom Ribbon Cable Connectors:

● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC

● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP



Why Choose Us

2.54mm Pitch Gray IDC Ribbon Cable 26 Pin



More RAST 5 connectors, pitch 5.0 mm

367399 03

367399 04367399 05367399 06

367399 07

367399 08

367399 09367399 10367399 11

367399 12

367399 13

367399 14367399 15367399 16

367399 17

367399 18

367399 19367399 20

367399 21

367399 22

367399 23

367399 24367399 25

367399 26

367399 27



How to Order

1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
