Description

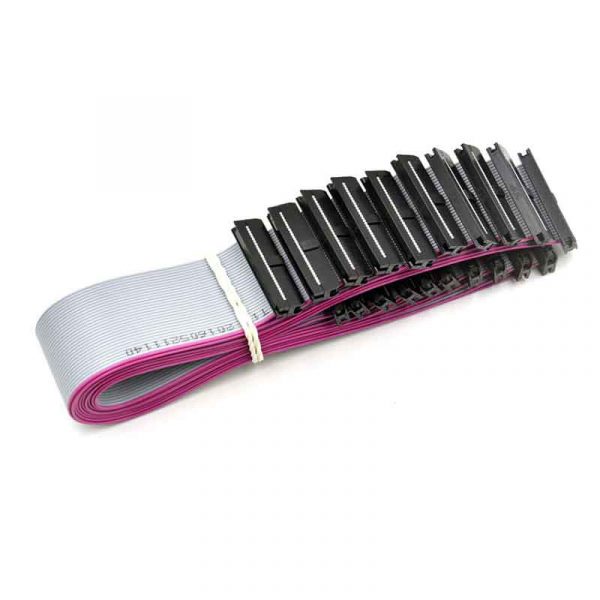

30 Pin Flat Cable 30 Pin Ribbon Cable Wire UL2651

The 2mm Pitch 30 Pin Flat Cable ribbon cable wires are a type of cable where many conducting wires are running parallel to each other on the same flat plane. With each individual wire laid side by side, they form a wide-flat cable resembling a piece of ribbon

CableUL2651 28AWG
Cable PitchPH1.0mm pitch
Cable Lengthcustom length
Colorgrey with red side
Connector TypeIDC female connector
Connector AIDC 30 pin female connector
Connector BIDC 30 pin female connector
Pin Pitch2.0mm pitch
MaterialPlastic, electric parts
Rated Current1Amp
Maximum voltageAC 500V / 1Minute
Insulation resistance1000mΩ
Contact resistance15mΩ
Operating Temperature-40 ° C ~ + 105 ° C
SampleAvailable
CertificationUL/VDE/CCC/CE/ROHS/SGS/REACH
ServiceOEM and ODM

30 Pin Flat Cable 30 Pin Ribbon Cable Wire

30 Pin Flat Cable 30 Pin Ribbon Cable Wire

Production Process

30 Pin Flat Cable 30 Pin Ribbon Cable Wire



Application

The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD players, backlights panel, car LCD panels, LCD TV panels, LED displays, box cabling, etc.

30 Pin Flat Cable 30 Pin Ribbon Cable Wire

Our Capacity

Custom Ribbon Cable Types

● PH2.54 IDC Cable Series

● PH2.0 IDC Cable Series

● PH1.27 IDC Cable Series

● Gray/Rainbow/Red/Yellow IDC DIP Cable Series

● … …



Custom Ribbon Cable Connectors:

● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC

● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP



More IDC Cable-to-Board Connector System

71978-150LF

71979-214LF71979-216LF71979-220LF

71979-226LF

71979-226LF

71979-240LF71980-114LF71980-114LF

71980-120LF

71980-126LF

71980-134LF71980-140LF72454-010LF

72454-010VLF

72454-014LF

72454-014VLF

72454-016LF

72454-016VLF72454-020LF



How to Order

1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
