3M Molded IDC Ribbon Cable Assemblies
- Description
- Contact Supplier Now!
Description

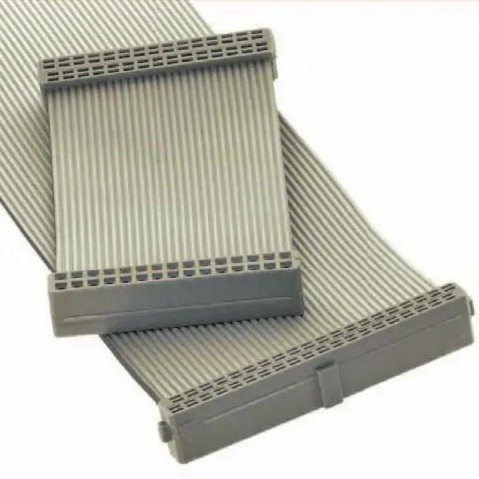

3M Molded IDC Ribbon Cable Assemblies
The 2.54mm pitch 3M molded IDC ribbon cable assemblies is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, medical equipment, instrumentation equipment, computer cabling, hard drives, LED displays, electronic box cabling, automobiles etc.
| Product Name | 3M Molded IDC Ribbon Cable Assemblies |
| Wire Gauge | 28 AWG |
| Cable Length | 18 in |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Connector End A | Socket |
| Connector End A Pin Count | 50 position |
| Connector End B | Socket |
| Connector End B Pin Count | 50 position |
| Connector Pitch | 2.54mm pitch |
| Voltage Rating | 30 V |
| Series | 1M |
| Brand | 3M electronic solutions division |
| Mfr. # | 1M-1010-050-3365-018.0-00-AB-00-0 |
| Temperature Rating | -20°C to +105°C |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
| Test | 100% testing inspection |
3M™ Molded Assembly
Connector:
Technical Specifi cation: TS-0632 for .100” x .100” Molded-On Socket
TS-2153 for .100” x .100” Molded-On PCB
TS-2152 for .100” x .300” or .600” Molded-On DIP:
• Available in multiple sizes
• Sockets mate with standard .100″ x .100″ headers
and plugs
• Molded-in strain relief
• Regulatory Information:
Production Process
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More Flat Ribbon Cables
923884-40-I | 8ES8-1AA21-0.50 | 2M-ACAC-044-3625-012.0-00-AB-00-0 |
1M-1010-050-3365-006.0-00-AB-00-0 | 1M-1010-034-3365-006.0-00-AB-00-0 | 1M-1010-060-3365-006.0-00-AB-00-0 |
| 1M-1010-040-3365-018.0-00-AB-00-0 | 1M-1010-050-3365-018.0-00-AB-00-0 | 8ES8-1DF21-1.00 |
8ES8-1DF21-0.50 | 8ES8-1DD21-1.00 | 8ES8-1AA21-1.00 |
8ES8-1DD21-0.50 | SL8802/22-18DN5-00 | 2M-ACBD-026-3625-006.0-00-AB-00-0 |
| 2M-ACBD-020-3625-012.0-00-AB-00-0 | 2M-ACBD-026-3625-012.0-00-AB-00-0 | 2M-BDBD-040-3625-012.0-00-AB-00-0 |
1M-1010-034-3365-018.0-00-AB-00-0 | 1M-10A1-016-3365-018.0-00-AB-00-0 | 2M-ACBD-030-3625-012.0-00-AB-00-0 |
2M-ACBD-044-3625-003.0-00-AB-00-0 | 2M-ACBD-050-3625-003.0-00-AB-00-0 | 2M-ACBD-050-3625-006.0-00-AB-00-0 |
2M-ACBD-010-3625-012.0-00-AB-00-0 | 2M-ACBD-044-3625-012.0-00-AB-00-0 | 7100195428 |
1100004567 | 2M-ACBC-050-3625-006.0-00-AB-00-0 | 8KJ2-0743-0250 |
| 8KC5-0742-0250 | 8KH3-0734-0500 | 2M-ACBD-010-3625-003.0-00-AB-00-0 |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
