40 Pin Flat Ribbon Cable 2×20 Ribbon Cable
- Description
- Contact Supplier Now!
Description

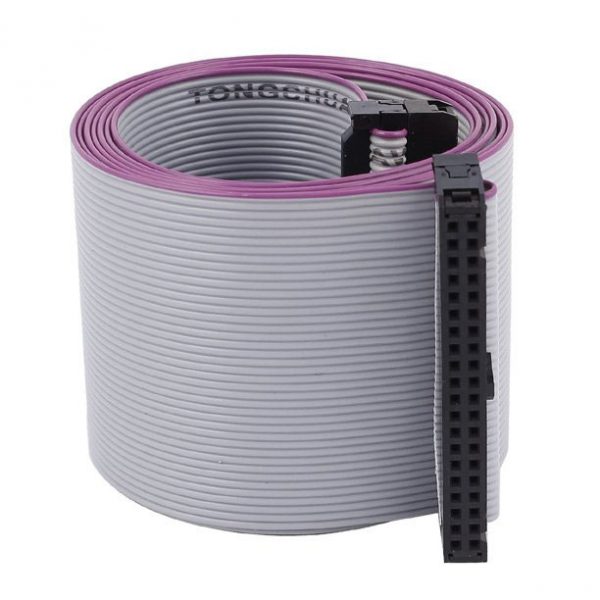

40 Pin Flat Ribbon Cable 2×20 Ribbon Cable
● Feature with female to female 40pin IDC connector extension flat ribbon cable 2×20 Ribbon Cable
● This type of ribbon cable is used by most Atmel AVR ISP and in-system programmers.
● Allows to extend standard IDC 40-Pin Cable and can also be used for additional applications, such as hard drive, motherboard, CD, DVC, HDD, CDRW and DVCRW.
The ribbon cable are small, flat, and flexible, which makes them best fit for areas with limited space or compartment. They can bend or fold to fit into tight areas.
Specifications
| Cable | UL2651 28AWG |
| Cable Pitch | PH1.27MM |
| Total Length | 20cm or custom length |
| Jacket | PVC |
| Color | Gray with red side |
| Connector Type | IDC 40 pin male to female |
| Connector Row | 2 row |
| Pin Number | 40 pin |
| IDC Connector Pitch | 2.54mm pitch |
| Main Materials | Plastic |
| Withstand Voltage | 300V |
| Contact Resistance | 15mΩ |
| Temperature | 105 Celsius |
| Application | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More IDC Cable-to-Board Connector System
66564-708LF | 66564-710LF | 66564-714LF | 66564-716LF |
66564-720LF | 66564-726LF | 66564-734LF | 66564-734LF |
| 66564-740LF | 66564-808LF | 66564-810LF | 66564-814LF |
66564-816LF | 66564-816PLF | 66564-820LF | 66564-826LF |
| 66564-834LF | 66564-840LF | 66564-850LF | 66564-910LF |
66564-914LF | 66564-916LF | 66564-934LF | 66900-010LF |
66900-014LF | 66900-016LF | 66900-020LF | 66900-024LF |
66900-026LF | 66900-034LF | 66900-040LF | 66900-044LF |
66900-050LF | 66900-060LF | 66900-110LF | 66900-114LF |
| 66900-120LF | 66900-124LF | 66900-126LF | 66429-093LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
