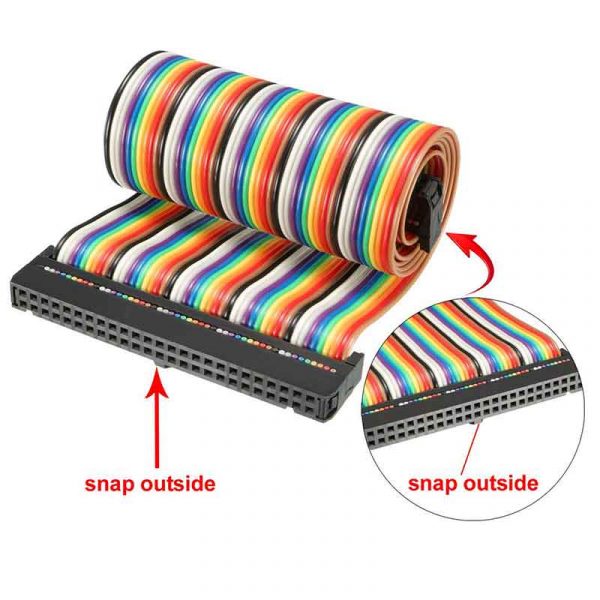

50 Pin Rainbow Ribbon Cable UL2651 28AWG
- Description
- Contact Supplier Now!
Description
IDC Wire 50 Pin Rainbow Ribbon Cable 43cm Length 2.54mm Pitch Type-C
The 2.54mm Pitch 50 Pin Rainbow Ribbon Cable saves space and time on circuit interconnecting assemblies.
The Conductor ribbon cable separate easily for clean terminations with standard wire connectors, jacks and pins.
Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, Atmel AVR ISP and in-system programmers etc.
Cable | UL2651 28AWG |
Cable Pitch | PH1.27MM |
Total Length | 43cm / 16.93-inch |
Jacket | PVC |
Color | Rainbow Color |
Connector Type | IDC Connector, Type B |
Pin Number | 50 Pin |
Pin Pitch | 2.54mm pitch |
Material | Plastic, Electric Parts |
Rated Current | 1Amp |
Maximum voltage | AC 500V / 1Minute |
Insulation resistance | 1000mΩ |
Contact resistance | 15mΩ |
Operating Temperature | -40 ° C ~ + 105 ° C |
Sample | Available |
Package | PE bags |
Service | OEM ODM Accepted |
Production Process
Application
Our Capacity
What kinds of ribbon cable We Can custom:
- PH2.54 IDC Cable Series
- PH2.0 IDC Cable Series
- PH1.27 DIC Cable Series
- Red IDC DIP Cable Series
- IDC Connector Series
Custom ribbon cable connectors Capacity:
- UL 2651 certified gray cable 2-64 P: PH 1.27 mm, 1.0 mm, 0.635 mm;
- IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
- DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
- IDC Gray Cable: Customize any length specification, sample production
- Rainbow Flat Cable
More RAST 2.5 connectors
3516-1 03 | 3516-1 04 | 3516-1 05 | 3516-1 06 | 3516-2 03 |
3516-2 04 | 3516-2 05 | 3516-2 06 | 3516-2 07 | 3516-2 08 |
3516-2 09 | 3516-2 10 | 3517 02 | 3517 03 | 3517 04 |
3517 05 | 3517 06 | 3517 07 | 3517 08 | 3517 09 |
3517 10 | 3517 11 | 3517 12 | 3517 13 | 3517 14 |
How to Order
Talk with us for your ribbon cable demands – You (or our engineer) provide drawing – Confirm drawing – Provide quotation – Discuss samples needs -Sample approved -Payment for your order – Mass product AFTER sample approved – Testing before send out – Delivery
