Description

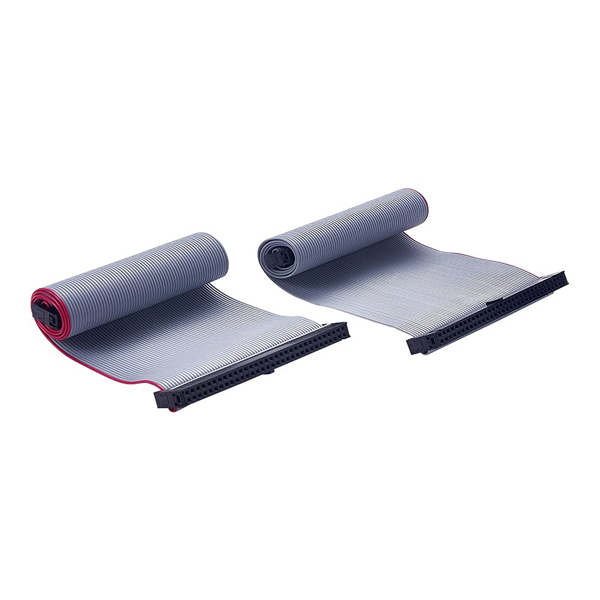

64 Pin Ribbon Cable 64 Pins Connector Flat Ribbon Cable
The 64 pin ribbon cable is small in size and light in weight. The ribbon cable board was originally designed to replace the larger network cable harness wires. Ribbon cables are made by etching copper circuits or printing polymer thick film circuits on polymer substrates.
For devices that are both thin, light and compact, the design solutions range from single-sided conductive traces to complex multi-layer three-dimensional assemblies. The total weight and volume of ribbon cables are reduced by 70% compared with traditional round wire harness methods.
Specifications
| Cable | 32AWG 30AWG 28AWG 26AWG 24AWG |
| Cable pitch | 0.635MM 1.0MM 1.27MM |
| Copper core conductor | 7/0.08MM 7/0.09MM 7/0.1MM 7/0.12MM 7/0.16MM 7/0.2MM |
| Cable color | Gray with red side color, rainbow color, or custom |
| Cable length | According to your needs |
| Connector type | 64 pin IDC connector 64 pin DIP connector |
| Connector gender | Male and female connector |
| Connector pitch | 1.27MM pitch 2.0MM pitch 2.54mmMM pitch |
| Connector number | 2, 3, or according to your needs |
| Operating temperature | -40°C~+105°C |
| Main material | Plastic |
| Application | Used for data transmission and communications |
| Testing | 100% tested before shipment |
| Sample | Available |
| Service | OEM and ODM |
Cable Types
| Cable pitch: 0.635MM / 1.0MM / 1.27MM |
 |
More Connectors
 |  |  |  |
Black IDC connector – 64P | Gray IDC connector – 64P | Shrouded IDC male header connector – 64P | Gray IDC connector with lock – 64P |
 |  |  | … … |
| Black horn buckle IDC connector – 64P | Gray horn buckle IDC connector – 64P | DC3 horn buckle connector – 64P | … … |
 |  |  |
| Gray IDC ribbon cable – 64P | Gray IDC ribbon cable – 64P | IDC ribbon cable – 64P |
 |  | … … |
| Rainbow IDC ribbon cable – 64P | Rainbow IDC ribbon cable – 64P | … … |
