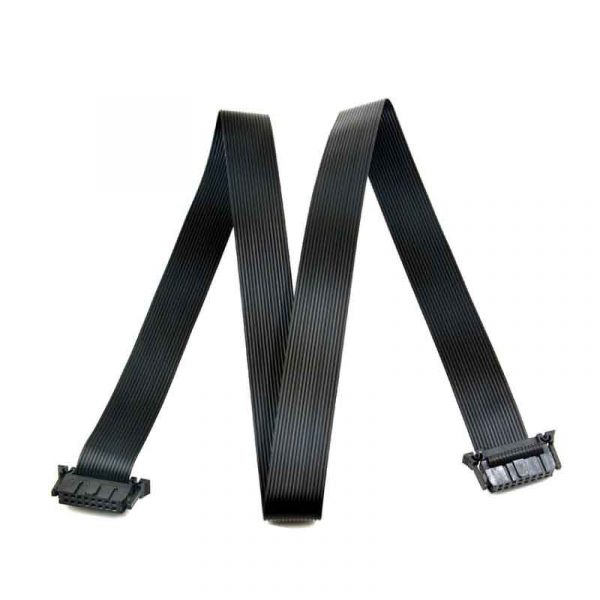

GPIO Black Ribbon Cable 16Pin IDC Cable

GPIO Black Ribbon Cable 16Pin IDC Cable

Description

GPIO Black Ribbon Cable 16Pin IDC Cable

The 2.54mm GPIO Black Ribbon Cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, medical equipment, instrumentation equipment, computer cabling, hard drives, CD driver, video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV panels, LED displays, electronic box cabling, automobiles, digital cameras, etc.

Cable UL2651 28AWG (Other: 32AWG 30AWG 26AWG 24AWG)
Cable Pitch PH1.27MM (Other: 0.635MM, 1.0MM, 2.0MM, 2.54MM)
Conductor Construction 7/0.12MM (Other general  7/0.08MM, 7/0.09MM, 7/0.1MM, 7/0.16MM, 7/0.2MM 7 of 7-strand copper wire)
Jacket Color Black
Connector 16 pin 2.54mm pitch female IDC connector
Conductor Diameter 0.12 ± 0.005mm
Conductor Elongation 18% ↑
Withstand Voltage 2KV 10mA /
Conductor Resistance ≤237 ohms / RM ↓
Operating Temperature 15mΩ
Operating Temperature -40 °C ~ + 105 °C
Certification UL/VDE/CCC/CE/ROHS/SGS/REACH
Service OEM and ODM

GPIO Black Ribbon Cable 16Pin IDC Cable

GPIO Black Ribbon Cable 16Pin IDC Cable

Production Process

GPIO Black Ribbon Cable 16Pin IDC Cable



Application

GPIO Black Ribbon Cable 16Pin IDC Cable

Our Capacity

Custom Ribbon Cable Types

● PH2.54 IDC Cable Series

● PH2.0 IDC Cable Series

● PH1.27 IDC Cable Series

● Gray/Rainbow/Red/Yellow IDC DIP Cable Series

● … …



Custom Ribbon Cable Connectors:

● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC

● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP



More WR-TBL Series 2169 – 7.50 mm Horizontal Entry Modular w. Rising Cage Clamp

691216910002

691216910003



More WR-TBL Series 2168 – 10.00 mm Vertical Entry w. Rising Cage Clamp

691216800001 691216800101

691216800002



More WR-TBL Series 4184 – 7.62 mm 45° Entry Screwless

691418420002 691418420003 691418420004 691418420005 691418420006



More WR-TBL Series 2164 – 7.62 mm Vertical Entry Rising Cage Clamp

691216400002

691216400003



More WR-TBL Series 4049B – 7.50 mm Screwless Spring Clamp Power Connector

691404910002B

691404910003B

691404910005B



How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
