Description

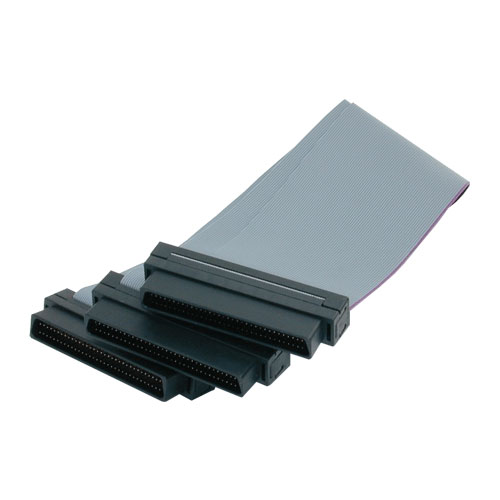

Data Ribbon Cable 68 Pin Ribbon Cable
The Data Ribbon Cable 68 pin ribbon cable is necessary to use the proper type of SCSI cable with your SCSI hard drives and SCSI controller cards. Using an improper cable will result in poor performance from your costly, high speed SCSI devices. Use this internal SCSI 3 ribbon cable to connect hard drives. This cables is made of PVC cable for excellent noise and crosstalk reduction.
The ribbon cable separates easily for clean terminations with standard wire connectors, jacks and pins. And the ribbon cable saves space and time on circuit interconnecting assemblies.
| Cable | SCSI-3 68-pin Male Ribbon |
| Cable Length | 26in |
| Conductor Dimension | 7/0.12MM |
| Jacket color | grey |
| Connector | (3) 68-Pin Connectors support (2) devices (1 connector used for SCSI card) |
| Conductor Diameter | 0.12 ± 0.005mm |
| Conductor Elongation | 18% ↑ |
| Withstand Voltage | 2KV 10mA / |
| Conductor Resistance | ≤237 ohms / RM ↓ |
| Operating Temperature | -40 °C ~ + 105 °C |
| Designed for | Installation of up to two internal SCSI-3 devices into a computer case |
| Insulation Jacket | Environmental PVC |
| Service | OEM and ODM |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More Housings—Exterior Lock
69155-014 | 69155-020 | 69155-026 | 69155-110 | 69155-116 |
69155-124 | 69155-150 | 69155-160 | 69155-210 | 69155-240 |
69155-316 | 72454-010V | 72454-010V | 72454-040 | 78280-430 |
78280-460 | 78280-460 | 87061-510 | 87061-617 | 88874-010 |
88874-020 | 88874-026 | 88874-134 | 88874-610 | 88874-634 |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
