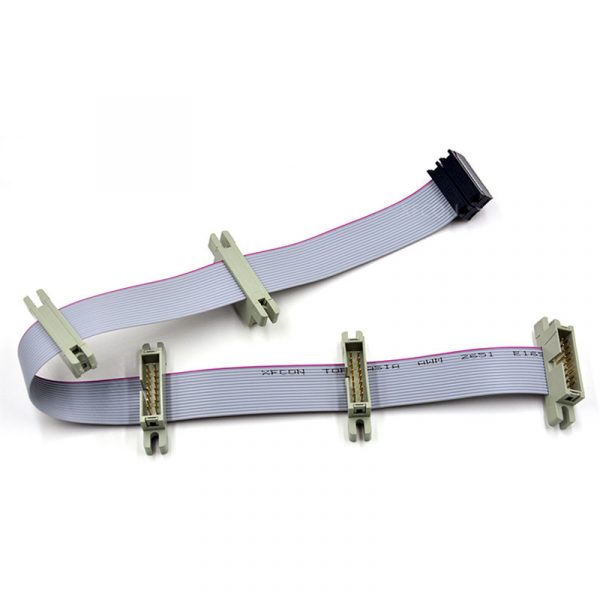

Box Header 16 Pin Flat Ribbon Cable UL2651

Box Header 16 Pin Flat Ribbon Cable UL2651

Description

Electrical Connector 16 Pin Flat Ribbon Cable, 2.54mm Box Header Flat Ribbon Cable

The 2.54mm pitch 16 Pin Flat Ribbon Cable separates easily for clean terminations with standard wire connectors, jacks and pins. And the ribbon cable saves space and time on circuit interconnecting assemblies.

Cable UL2651 28AWG
Cable Length According to the customers’ requirements
Conductor 7/0.12mm, bare Copper
Jacket color gray with red edge
Connector type IDC  connector
Connector 1 FC 16pin IDC 2.54mm connector
Connector 2 FC 2.54mm box header connector
Insulation resistance 1000mΩ
Operating Temperature ≤-40 ° C ~ + 105 ° C
Testing 100% Open & Short Test
Certification UL/VDE/CCC/CE/ROHS/SGS/REACH
Delivery day 3-15 working days
Service OEM and ODM

Box Header 16 Pin Flat Ribbon Cable UL2651



Production Process

Box Header 16 Pin Flat Ribbon Cable UL2651Box Header 16 Pin Flat Ribbon Cable UL2651



Test

Box Header 16 Pin Flat Ribbon Cable UL2651

Application

The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, box cabling, etc.

Box Header 16 Pin Flat Ribbon Cable UL2651

Our Capacity

Custom Ribbon Cable Types

● PH2.54 IDC Cable Series

● PH2.0 IDC Cable Series

● PH1.27 IDC Cable Series

● Gray/Rainbow/Red/Yellow IDC DIP Cable Series

● … …



Custom Ribbon Cable Connectors:

● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC

● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP



Why Choose Us

Box Header 16 Pin Flat Ribbon Cable UL2651



More RAST 2.5 connectors, pitch 2.5/5.0 mm

3500 03

3500 04 3500 05 3500 06

3500 07

3500 08

3500 09 3500 10 3500 11

3500 12

3500 13

3500 14

3500 15 3500 16

3500 17

3500 18

3500 19

3500 20



How to Order

1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
