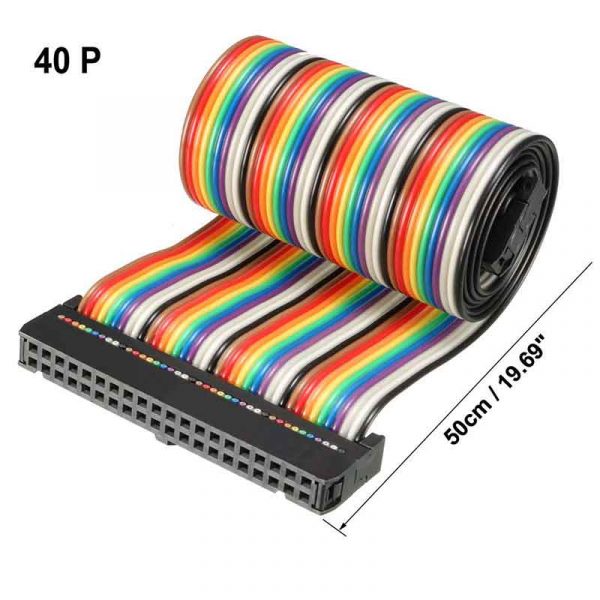

40 Pin Flat Rainbow Ribbon Cable 28AWG
- Description
- Contact Supplier Now!
Description
IDC Wire 40 Pin Rainbow Ribbon Cable 66cm Length 2.54mm Pitch Type-C
The 2.54mm Pitch 40 Pin Rainbow Ribbon Cable saves space and time on circuit interconnecting assemblies. The Conductor ribbon cable separate easily for clean terminations with standard wire connectors, jacks and pins.
| Cable | UL2651 28AWG |
| Cable Pitch | PH1.27MM |
| Total Length | 50cm / 19.69-inch |
| Jacket | PVC |
| Color | Rainbow color |

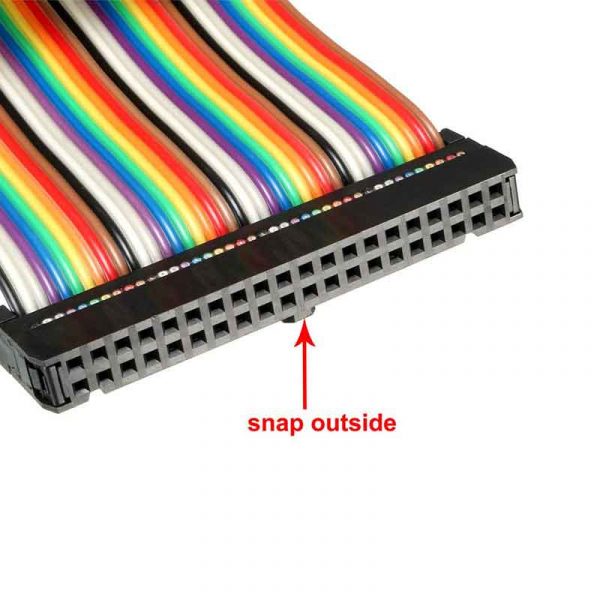

| Connector Type | IDC connector, Type B |
| Pin Number | 40 pin |
| Pin Pitch | 2.54mm pitch |
| Material | Plastic, electric parts |
| Rated Current | 1Amp |
| Maximum voltage | AC 500V / 1minute |
| Insulation resistance | 1000mΩ |
| Contact resistance | 15mΩ |
| Operating Temperature | -40 ° C ~ + 105 ° C |
| Sample | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
Production Process
Application
The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, box cabling, etc.
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More RAST 2.5 connectors
3517-2 12 | 3517-2 13 | 3517-2 14 | 3517-2 15 | 3517-2 16 |
3517-2 17 | 3517-2 18 | 3517-2 19 | 3517-2 20 | 3517-4 02 |
3517-4 03 | 3517-4 04 | 3517-4 05 | 3517-4 06 | 3517-4 07 |
3517-4 08 | 3517-4 09 | 3517-4 10 | 3517-4 11 | 3517-4 12 |
3517-4 13 | 3517-4 14 | 3517-4 15 | 3517-4 16 |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
