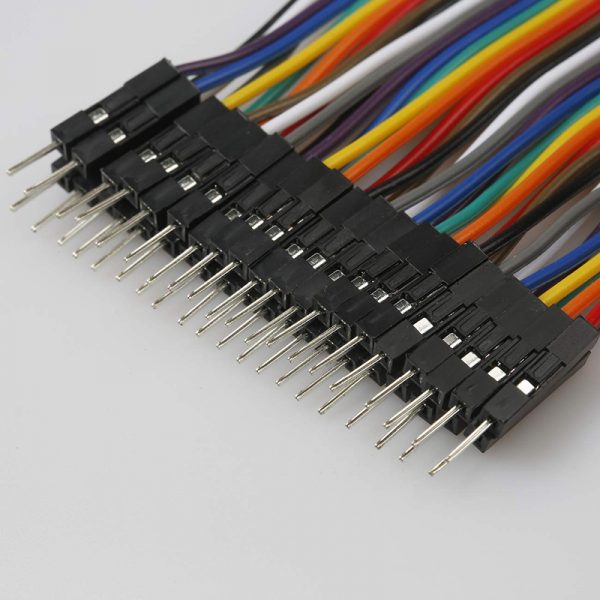

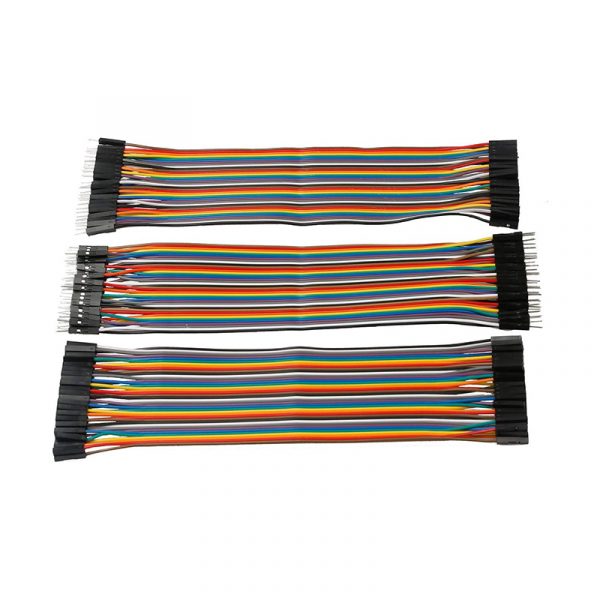

Dupont 40 Pin Breadboard Jumper Wire Ribbon Cable
- Description
- Contact Supplier Now!
Description
Breadboard Jumper Wires Optional Arduino Wire Dupont Cable Assorted Kit Multicolored Flat Ribbon Cable
40 Pin Ribbon cable, Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, suitable for most Atmel AVR jtag debuggers, in-system programmers, isp download, etc.
- Jumper Wires Kit,Michael Josh Electrical Solderless Breadboard Ribbon Cables
- The Jumper Cable can be separated according to the demand
- Compatible with 2.54mm spacing pin headers,and to support non-standard odd-spaced headers
- Great for Arduino breadboard kit projects,Portable design, easy and safe to use
- In the terminals have not damaged it can be reused, if damaged can also be used for soldering
| Cable | UL2651 28AWG cable or custom Cable |
| Cable Pitch | PH1.27MM |
| Copper wire Conductor | 7/0.12MM |
| Jacket color | Rainbow |
| Connector | 40 Pin 2.54mm Pitch IDC Connector |
| Conductor diameter | 0.12 ± 0.005mm |
| Conductor Elongation | 18% ↑ |
| Withstand Voltage | 2KV 10mA / |
| Conductor resistance | ≤237 ohms / RM ↓ |
| Operating temperature | 15mΩ |
| Operating Temperature | -40 °C ~ + 105 °C |
| Insulation Jacket | Environmental PVC 45P (RoHS) 8058 Grey |
| Service | OEM ODM Accepted |
Production Process
Application
Our Capacity
At ECOCABLES, Custom ribbon cable assemblies can include:
- Custom Flat ribbon cable,
- Discrete wire with custom twists
- Jacketed and shielded
- High flex & High speed,
- Color-coded
- Custom Split wires
- Materials other than PVC
Custom ribbon cable connectors Capacity：
- UL 2651 certified gray cable 2-64 P: PH 1.27 mm, 1.0 mm, 0.635 mm；
- IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
- DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
- IDC Gray Cable: Customize any length specification, sample production
- Rainbow Flat Cable
More RAST 2.5 Tab Header (Fully Loaded, External Locking)
#-1971817-8 | #-1971837-8 | #-1971817-9 | #-1971837-9 |
#-1971837-0 | #-1971818-1 | #-1971838-1 | #-1971818-2 |
#-1971818-3 | #-1971838-3 | 1-1773727-3 | #-1971818-4 |
#-1971818-5 | #-1971838-5 | #-1971838-2 | #-1971817-0 |
How to Order
Send us your Customized Request– We Quote for you — Creat our Drawings — Send Sample to you — Mass Production
