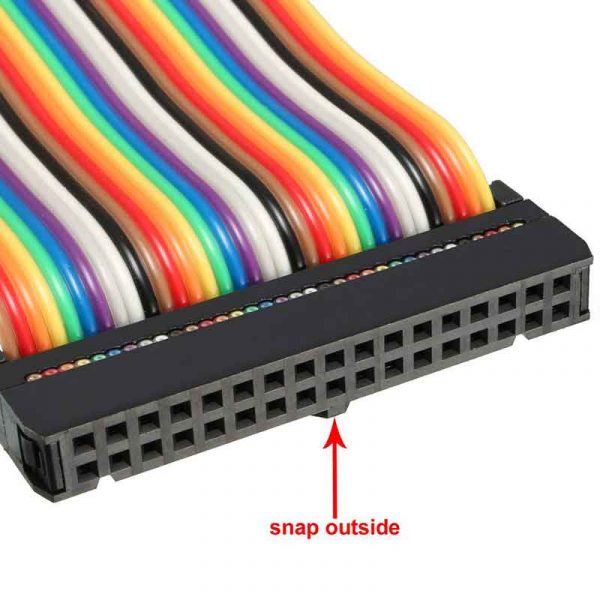

IDC 34 Pins Wire Flat Rainbow Ribbon Cable

IDC 34 Pins Wire Flat Rainbow Ribbon Cable

Description

IDC Wire Flat Rainbow Ribbon Cable 34 Pins 66cm Length 2.54mm Pitch Type-C

Easily and directly inserted into PCB. The 2.54mm Pitch 34 Pin Rainbow Ribbon Cable saves space and time on circuit interconnecting assemblies.
The Conductor ribbon cable separate easily for clean terminations with standard wire connectors, jacks and pins.
Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, Atmel AVR ISP and in-system programmers etc.

CableUL2651 28AWG
Cable PitchPH1.27MM
Total Length66cm / 25.98-inch
JacketPVC
ColorRainbow Color
Connector TypeIDC Connector, Type B
Pin Number34 Pin
Pin Pitch2.54mm pitch
MaterialPlastic, Electric Parts
Rated Current1Amp
Maximum voltageAC 500V / 1Minute
Insulation resistance1000mΩ
Contact resistance15mΩ
Operating Temperature-40 ° C ~ + 105 ° C
SampleAvailable
PackagePE bags
ServiceOEM ODM Accepted

IDC 34 Pins Wire Flat Rainbow Ribbon Cable

IDC 26 Pins Wire Flat Rainbow Ribbon Cable

Production Process

IDC 34 Pins Wire Flat Rainbow Ribbon Cable



Application

IDC 34 Pins Wire Flat Rainbow Ribbon Cable

Our Capacity

What kinds of ribbon cable We Can custom:

  • PH2.54 IDC Cable Series
  • PH2.0 IDC Cable Series
  • PH1.27 DIC Cable Series
  • Red IDC DIP Cable Series
  • IDC Connector Series

Custom ribbon cable connectors Capacity

  • UL 2651 certified gray cable 2-64 P: PH 1.27 mm, 1.0 mm, 0.635 mm;
  • IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
  • DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
  • IDC Gray Cable: Customize any length specification, sample production
  • Rainbow Flat Cable



More RAST 2.5 connectors

3512-2 02

3512-2 033512-2 043512-2 05

3512-2 06

3512-2 07

3512-2 083512-2 093512-2 10

3512-3 02

3512-3 03

3512-3 043512-3 053512-3 06

3512-3 07

3512-3 08

3512-3 09

3512-3 10



How to Order

Talk with us for your ribbon cable demands – You (or our engineer) provide drawing – Confirm drawing – Provide quotation – Discuss samples needs -Sample approved -Payment for your order – Mass product AFTER sample approved – Testing before send out – Delivery
