Description

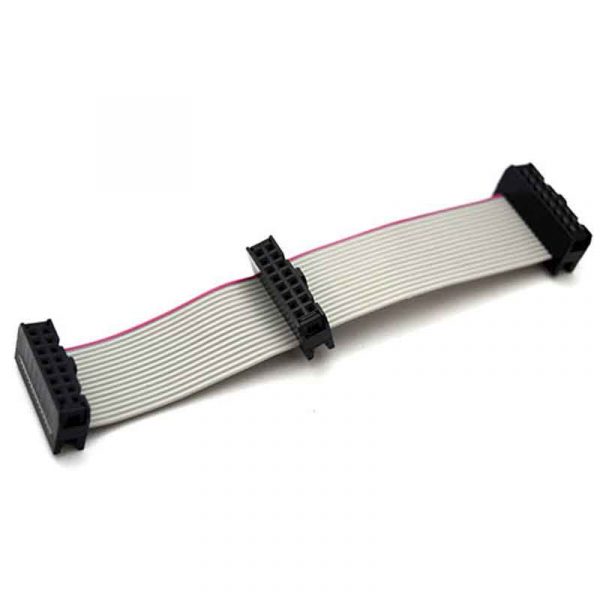

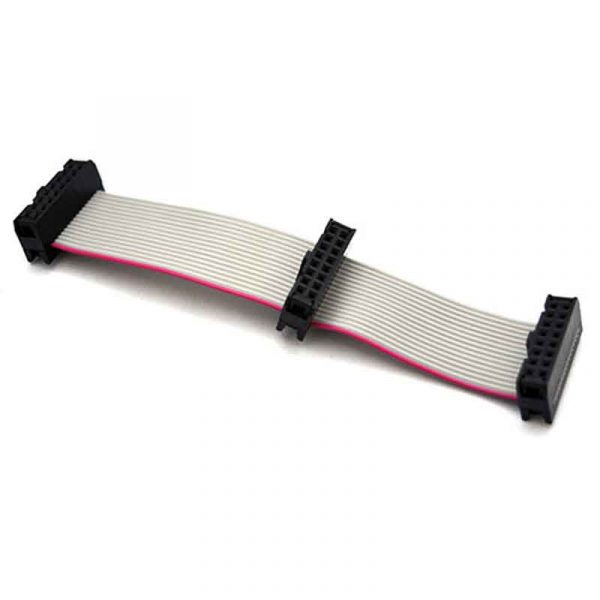

2.54MM Pitch Electronic Ribbon Cable Connectors 16 Pin UL2651 28AWG
The 2.54mm pitch 16 Pin Electronic Ribbon Cable has good appearance, without defects of plastic injection molding, metal parts may not have scratches, deformation and other defects of performance to meet the requirements.
This ribbon cable widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, video project devices, DVD players, backlights panel, car LCD panels, LCD TV panels, LED displays, box cabling, etc.
| Cable | UL2651 28AWG |
| Cable Pitch | PH1.27mm |
| Cable Length | custom |
| Color | grey with red edge |
| Connector Type | IDC female connector |
| Connector A | IDC 16 pin female |
| Connector B | IDC 16 pin female |
| Pin Pitch | 2.54mm pitch |
| Material | Plastic, electric parts |
| Rated Current | 1amp |
| Maximum Voltage | AC 500V / 1minute |
| Insulation Resistance | 1000mΩ |
| Contact Resistance | 15mΩ |
| Operating Temperature | -40 ° C ~ + 105 ° C |
| Sample | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM ODM Accepted |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More IDC Cable-to-Board Connector System
78280-460LF | 78295-102LF | 87061-213LF | 87061-217LF |
87061-220LF | 87061-225LF | 87061-305LF | 87061-310LF |
| 87061-320LF | 87061-325LF | 87061-405LF | 87061-408LF |
87061-425LF | 87061-605LF | 87061-617LF | 87061-805LF |
| 87610-208LF | 87610-210LF | 87610-214LF | 87610-216LF |
87610-220LF | 87610-226LF | 87610-230LF | 87610-234LF |
87610-240LF | 87610-250LF | 88873-004LF | 88873-012LF |
88873-116LF | 88874-016LF | 88874-020LF | 88874-026LF |
88874-034LF | 88874-102LF | 88874-110LF | 88874-610LF |
| 88874-634LF | 88880-001LF | 88880-002LF | 88880-013LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
