Description

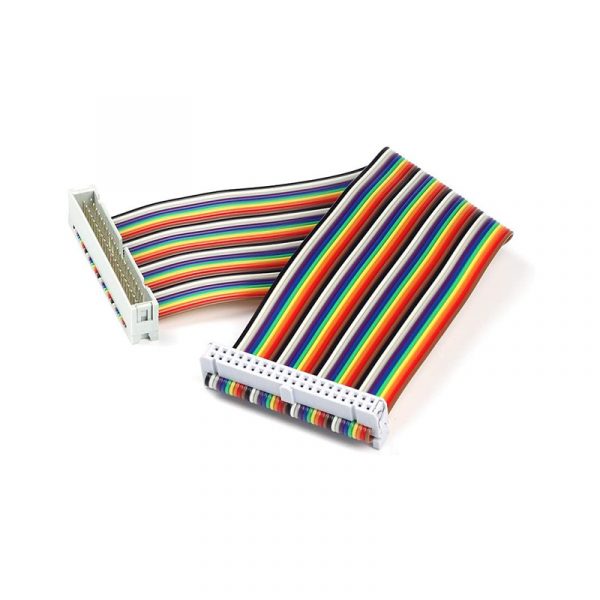

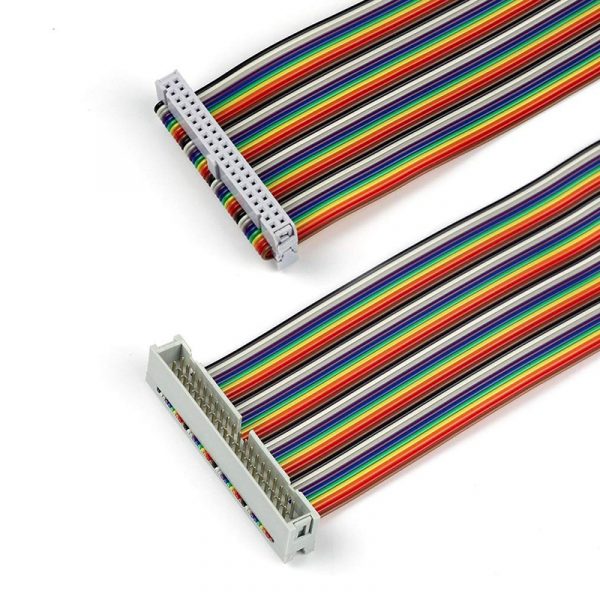

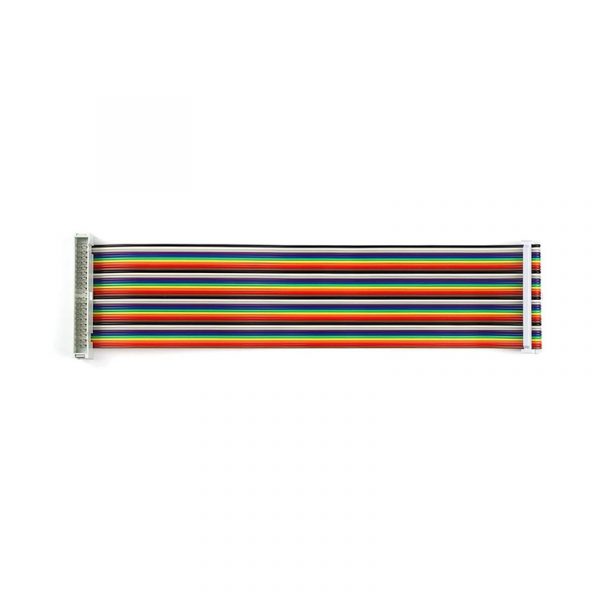

UL2651 40 Pin GPIO Cable 40 Pin Flat Cable
The 2.54mm pitch rainbow 40 pin GPIO cable 40 pin flat cables are a type of cable where many conducting wires are running parallel to each other on the same flat plane. With each individual wire laid side by side, they form a wide-flat cable resembling a piece of ribbon
| Cable | UL2651 28AWG |
| Cable Length | Custom |
| Conductor Dimension | 7/0.12MM |
| Cable Color | rainbow |
| Connector Type | IDC female connector |
| Connector Pitch | 2.54mm pitch |
| Connector Pin | 40 pin |
| Contact Resistance | 15mΩ |
| Operating Temperature | ≤-40 ° C ~ + 105 ° C |
| Testing | 100% tested before shipment |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Delivery Day | 3-15 working days |
| Service | OEM and ODM |
Production Process
Test
Application

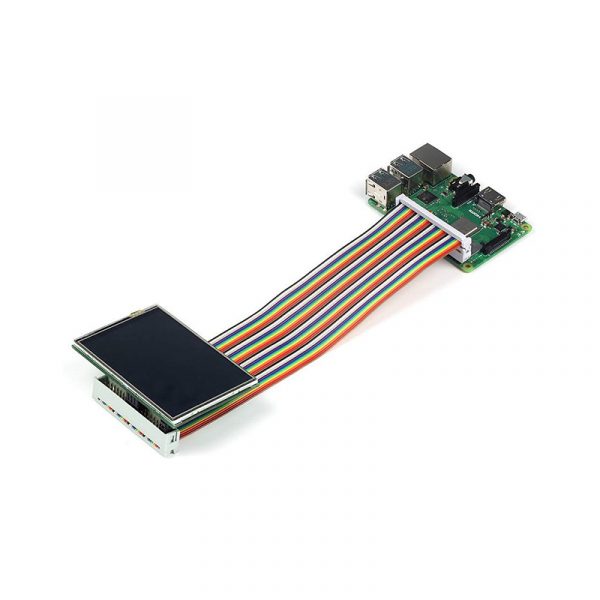

The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data equipment, gaming equipment, computer cabling, hard drives, CD driver, video project devices, DVD players, etc.
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
Why Choose Us
More IDC Cable-to-Board Connector System
66902-110LF | 66902-114LF | 66902-116LF | 66902-120LF |
| 66902-124LF | 66902-126LF | 66902-130LF | 66902-134LF |
66902-140LF | 66902-144LF | 66902-160LF | 66902-244LF |
66902-310LF | 66902-316LF | 66902-330LF | 66902-340LF |
66902-344LF | 66902-350LF | 66902-360LF | 66963-085LF |
| 66963-272LF | 67916-079LF | 67916-241LF | 68120-006LF |
68120-018LF | 68170-016LF | 68751-016LF | 68751-020LF |
68751-250LF | 68751-310LF | 68751-314LF | 71918-145LF |
71918-151LF | 71922-114BLF | 72454-026BLF | 72454-041VLF |
| 75867-134LF | 75867-139BLF | 75867-208LF | 75867-209LF |
75867-210LF | 75867-233LF | 75867-333LF | 75867-338LF |
| 75869-128LF | 75869-142LF | 75869-160LF | 75869-209LF |
75869-210LF | 75869-264LF | 75869-326LF | 75869-360LF |
| 78283-850LF | 87061-330LF | 87061-520LF | 87061-705LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
