Flat Cable 50 Pin 2.54 MM Pitch Ribbon Cable
- Description
- Contact Supplier Now!
Description

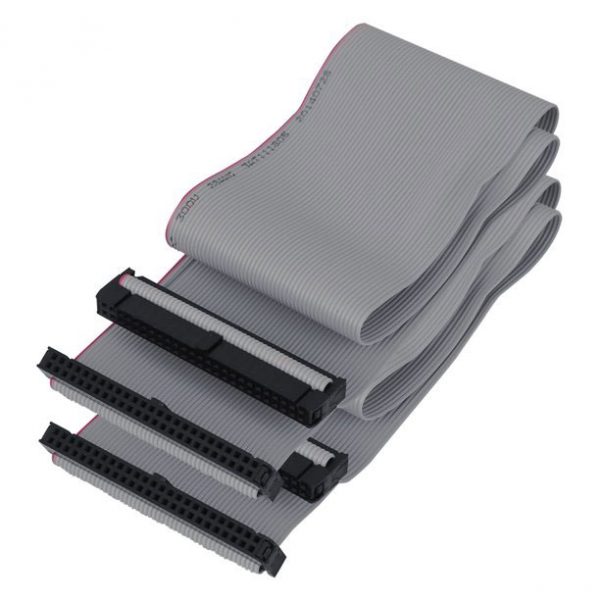

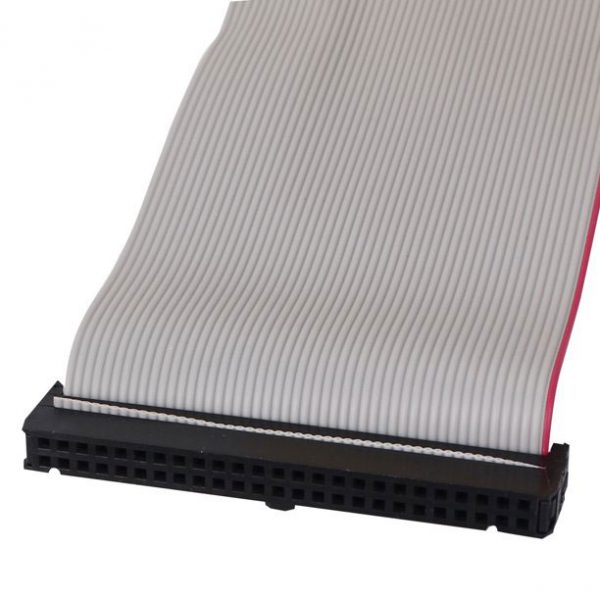

Flat Cable 50 Pin 2.54 MM Pitch Ribbon Cable
● Feature with female to female 50pin IDC connector extension flat ribbon cable Flat Cable 50 Pin Flat Ribbon Cable
● This type of ribbon cable is used by most Atmel AVR ISP and in-system programmers.
● Allows to extend standard IDC 50-pin cable and can also be used for additional applications, such as hard drive, motherboard, CD, DVC, HDD, CDRW and DVCRW.
The ribbon cable are small, flat, and flexible, which makes them best fit for areas with limited space or compartment. They can bend or fold to fit into tight areas.
Specifications
| Cable | UL2651 28AWG cable |
| Cable Pitch | PH1.27MM |
| Total Length | 50cm/2″ |
| Width | 20mm/8″ |
| Color | Gray with red side |
| Connector Type | 50 pin female to 50 pin female |
| Connector Row | 2 row |
| Pin Number | 50 pin |
| IDC Connector Pitch | 2.54mm pitch |
| Main Materials | Plastic |
| Withstand Voltage | 300V |
| Contact Resistance | 15mΩ |
| Temperature | 105C |
| Application | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More IDC Cable-to-Board Connector System
71600-264LF | 71600-306LF | 71600-308LF | 71600-310LF |
71600-314LF | 71600-316LF | 71600-318LF | 71600-320LF |
| 71600-324LF | 71600-326LF | 71600-330LF | 71600-334LF |
71600-340LF | 71600-344LF | 71600-350LF | 71600-360LF |
| 71600-364LF | 71600-404LF | 71600-404LF | 71600-406LF |
71600-408LF | 71600-410LF | 71600-414LF | 71600-416LF |
71600-418LF | 71600-420LF | 71600-424LF | 71600-426LF |
71600-430LF | 71600-434LF | 71600-440LF | 71600-444LF |
71600-450LF | 71600-460LF | 71600-464LF | 71600-506LF |
| 71600-516LF | 71600-604LF | 71600-606LF | 71600-608LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
