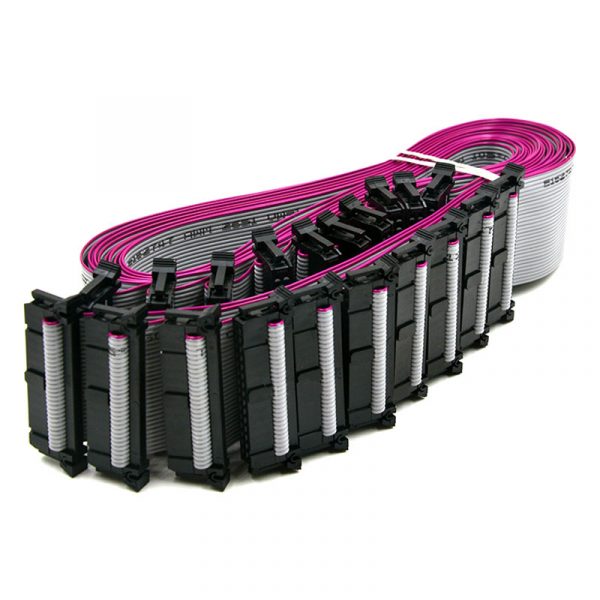

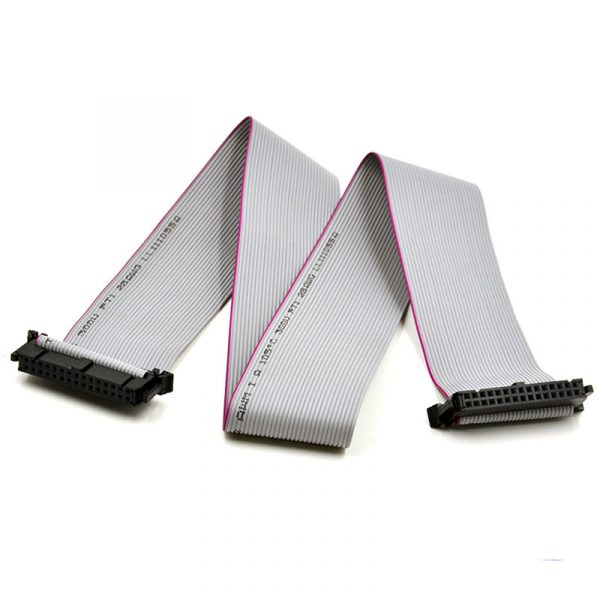

Gray 30 Pin 2.54mm Pitch Flat Ribbon Cable

Gray 30 Pin 2.54mm Pitch Flat Ribbon Cable

Description

Gray 30 pin 2*15pin IDC 30way 2.54mm Pitch Flat Ribbon Cable

The 2.54mm Pitch 2.54mm Pitch Flat Ribbon Cable separates easily for clean terminations with standard wire connectors, jacks and pins. And the ribbon cable saves space and time on circuit interconnecting assemblies.

CableUL2651 28AWG
Cable LengthAccording to the customers’ requirements
Conductor Dimension7/0.12MM
Cable ColorGray with red edge
Connector typeIDC female to female connector
Connector Pitch2.54mm pitch
Connector Pin30 pin
Contact Resistance15mΩ
Operating Temperature≤-40 ° C ~ + 105 ° C
Testing100% tested before shipment
CertificationUL/VDE/CCC/CE/ROHS/SGS/REACH
Delivery Day3-15 working days
ServiceOEM and ODM

Gray 30 Pin 2.54mm Pitch Flat Ribbon Cable



Production Process

Gray 30 Pin 2.54mm Pitch Flat Ribbon CableGray 30 Pin 2.54mm Pitch Flat Ribbon Cable



Test

Gray 30 Pin 2.54mm Pitch Flat Ribbon Cable

Application

The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, box cabling, etc.

Gray 30 Pin 2.54mm Pitch Flat Ribbon Cable

Our Capacity

Custom Ribbon Cable Types

● PH2.54 IDC Cable Series

● PH2.0 IDC Cable Series

● PH1.27 IDC Cable Series

● Gray/Rainbow/Red/Yellow IDC DIP Cable Series

● … …



Custom Ribbon Cable Connectors:

● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC

● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP



Why Choose Us

Gray 30 Pin 2.54mm Pitch Flat Ribbon Cable



More RAST 5 connectors, pitch 5.0 mm

3671 03

3671 043671 053671 06

3671 07

3671 08

3671 09

3671 103671 11

3671 12

3671 13

3671 143671 153671 16

3671 17

3671 18

3671 19

3671 20

3671 21

3671 22

3671 23

3671 24

3671 25

3671 26

3671 27



How to Order

1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
