Grey 2.54mm Pitch Flat Ribbon Cable 64 Pin
- Description
- Contact Supplier Now!
Description

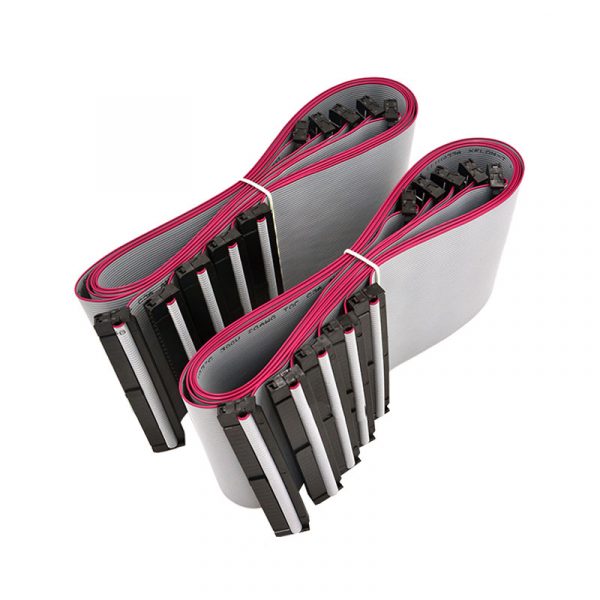

Grey 64 pin 2*32pin IDC 64way 2.54mm Pitch Flat Ribbon Cable
The grey 2.54mm Pitch Flat Ribbon Cable separates easily for clean terminations with standard wire connectors, jacks and pins. And the ribbon cable saves space and time on circuit interconnecting assemblies.
| Cable | UL2651 28AWG |
| Cable Length | According to the customers’ requirements |
| Conductor Dimension | 7/0.12MM |
| Cable Color | Gray with red edge |
| Connector Type | IDC female connector |
| Connector Pitch | 2.54mm pitch |
| Connector Pin | 64 pin connector |
| Contact Resistance | 15mΩ |
| Operating Temperature | ≤-40 ° C ~ + 105 ° C |
| Testing | 100% tested before shipment |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Delivery Day | 3-15 working days |
| Service | OEM and ODM |
Production Process
Test
Application
The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, etc.
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
Why Choose Us
More RAST 5 connectors, pitch 5.0 mm
367199 03 | 367199 04 | 367199 05 | 367199 06 | 367199 07 |
367199 08 | 367199 09 | 367199 10 | 367199 11 | 367199 12 |
367199 13 | 367199 14 | 367199 15 | 367199 16 | 367199 17 |
367199 18 | 367199 19 | 367199 20 | 367199 21 | 367199 22 |
367199 23 | 367199 24 | 367199 25 | 367199 26 | 367199 27 |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
