2.54mm Pitch Connector Gray Flat Ribbon Cable
- Description
- Contact Supplier Now!
Description

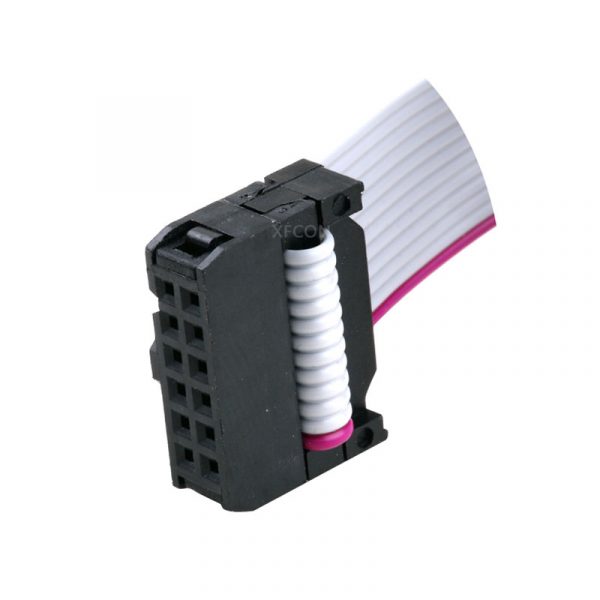

12 pin 2*6pin IDC 12way 2.54mm Pitch Connector Extension Gray Flat Ribbon Cable
The 2.54mm Pitch Gray Flat Ribbon Cable separates easily for clean terminations with standard wire connectors, jacks and pins. And the ribbon cable saves space and time on circuit interconnecting assemblies.
Cable | UL2651 28AWG |
Cable Length | According to the customers’ requirements |
Conductor Dimension | 7/0.12MM |
Cable Color | Gray with red edge |
Connector Type | IDC female to female connector |
Connector Pitch | 2.54mm pitch |
Connector Pin | 12 pin |
Contact Resistance | 15mΩ |
Operating Temperature | ≤-40 ° C ~ + 105 ° C |
Testing | 100% tested before shipment |
Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
Delivery Day | 3-15 working days |
Service | OEM and ODM |
Production Process
Test
Application
The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, box cabling, etc.
Our Capacity
Custom Ribbon Cable Types:
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors:
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
Why Choose Us
More RAST 5 connectors, pitch 5.0 mm
3645 08 | 3645 09 | 3645 10 | 3645 11 | 3645 12 |
3672 03 | 3672 04 | 3672 05 | 3672 06 | 3672 07 |
3672 08 | 3672 09 | 3672 10 | 3672 11 | 3672 12 |
3672 13 | 3672 14 | 3672 15 | 3672 16 | 3672 17 |
3672 18 | 3672 19 | 3672 20 | 3672 21 | 3672 22 |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
