Hard Drive IDE Ribbon 40 Pin Flat Cable
- Description
- Contact Supplier Now!
Description

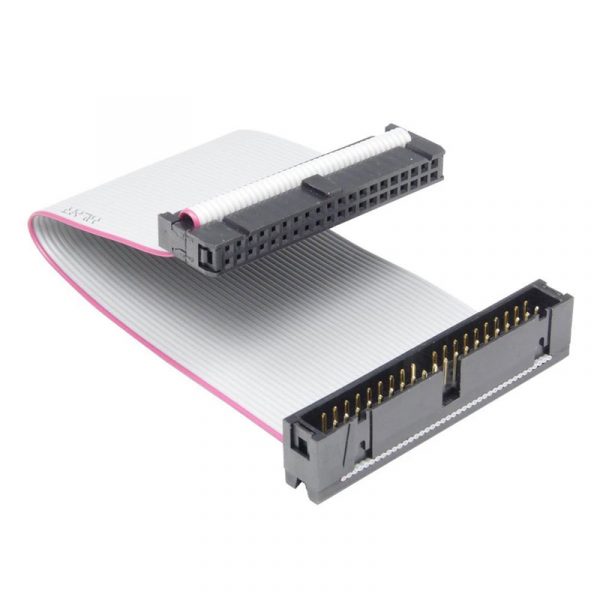

Hard Drive IDE Ribbon 40 Pin Flat Cable
The applications of the 40 Pin Flat Cable Hard Drive IDE Ribbon 40 Pin Flat Cable span numerous electronic devices other than computers. Some of which include printers, floppy drives, CD drives, hard drives, and more. The flat ribbon cable assembly is mostly useful in connecting two components in a compartment or device.
The ribbon cable are small, flat, and flexible, which makes them best fit for areas with limited space or compartment. They can bend or fold to fit into tight areas. Also, custom projects with power inlets will need a significant level of flexible cables.
Specifications
| Cable | UL2651 28AWG |
| Cable Pitch | PH1.27MM |
| Total Length | 20cm or custom |
| Jacket | PVC |
| Color | Gray with red side |
| Connector Type | IDE 40 pin male to female |
| Connector Row | 2 row |
| Pin Number | 40 pin |
| IDC Connector Pitch | 2.54mm pitch |
| Main Materials | Plastic |
| Withstand Voltage | 300V |
| Contact Resistance | 15mΩ |
| Temperature | 105 Celsius |
| Application | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More IDC Cable-to-Board Connector System
65863-461LF | 65863-470LF | 65863-506LF | 65863-620LF |
65863-717LF | 65863-741LF | 65863-744LF | 65863-861LF |
| 66207-004LF | 66207-005LF | 66207-009LF | 66207-012LF |
66207-013LF | 66207-014LF | 66207-016LF | 66207-022LF |
| 66207-023LF | 66207-056LF | 66207-060LF | 66207-136LF |
66373-110LF | 66373-115LF | 66373-138LF | 66423-002LF |
66429-015LF | 66429-019LF | 66429-049LF | 66429-051LF |
66429-055LF | 66429-057LF | 66429-061LF | 66429-067LF |
66429-069LF | 66429-073LF | 66429-075LF | 66429-079LF |
| 66429-081LF | 66429-085LF | 66429-091LF | 66429-093LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
