IDC 1.27 MM 24 Pin Ribbon Cable Assemblies

IDC 1.27 MM 24 Pin Ribbon Cable Assemblies

Description

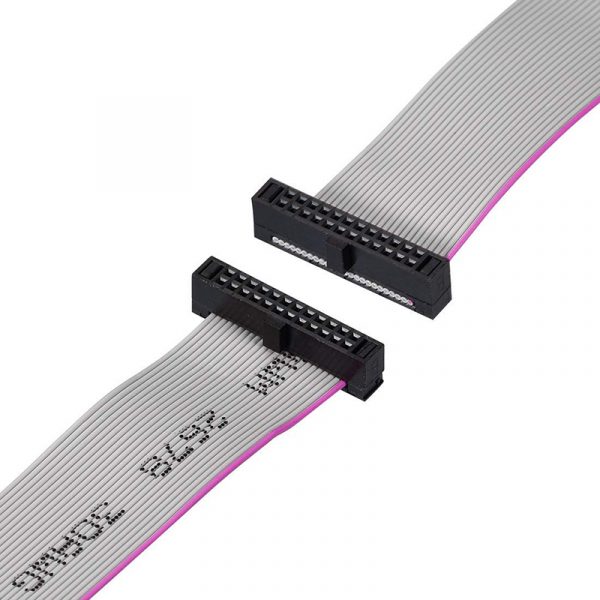

IDC 1.27 MM 24 Pin Ribbon Cable Assemblies

The 1.27mm Pitch 24 Pin Ribbon Cable Assemblies has good appearance, without defects of plastic injection molding, metal parts may not have scratches, deformation and other defects of performance to meet the requirements.

CableUL2651 28AWG
Cable PitchPH0.635mm

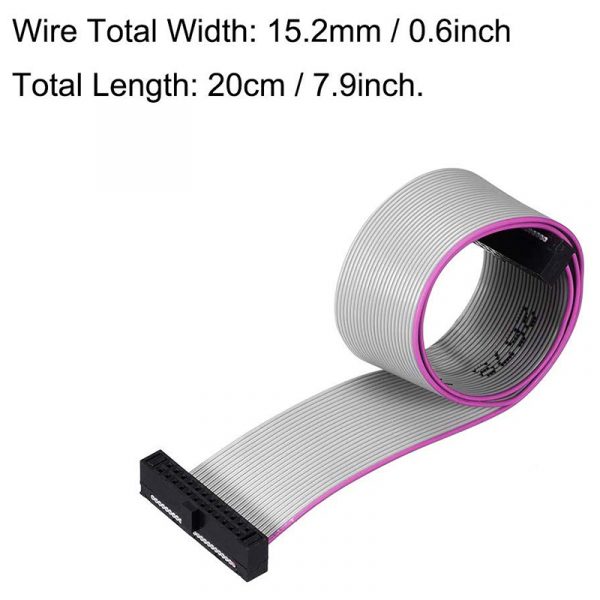

Total Length20cm / 7.9inch.
Wire Total Width15.2mm / 0.6inch
Colorgrey with red edge
Connector TypeIDC female connector

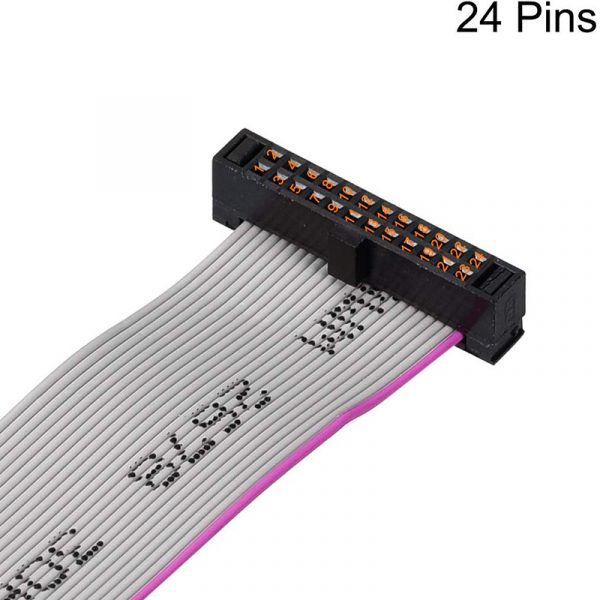

Pin Number24 pin
Pin Pitch1.27mm pitch
MaterialPlastic
Rated Current1Amp
Maximum voltageAC 500V / 1minute
Insulation resistance1000mΩ
Contact resistance15mΩ
Operating Temperature-40 ° C ~ + 105 ° C
SampleAvailable
CertificationUL/VDE/CCC/CE/ROHS/SGS/REACH
ServiceOEM and ODM

IDC 1.27 MM 24 Pin Ribbon Cable Assemblies

IDC 1.27 MM 24 Pin Ribbon Cable Assemblies

Production Process

IDC 1.27 MM 24 Pin Ribbon Cable Assemblies



Application

The ribbon cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, computer cabling, hard drives, CD driver, video project devices, DVD Players, car LCD panels, LCD TV Panels, LED displays, box cabling, etc.

IDC 1.27 MM 24 Pin Ribbon Cable Assemblies

Our Capacity

Custom Ribbon Cable Types

● PH2.54 IDC Cable Series

● PH2.0 IDC Cable Series

● PH1.27 IDC Cable Series

● Gray/Rainbow/Red/Yellow IDC DIP Cable Series

● … …



Custom Ribbon Cable Connectors:

● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC

● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP



More IDC Cable-to-Board Connector System

53610-S10-7

53610-S14-753610-S16-653610-S16-7
53610-S20-753610-S26-753610-S40-7

53611-S40-420

53612-G10-6

53612-G14-6

53612-G14-7

53612-G16-4

53612-G16-6

53612-G16-7

53612-G20-7

53612-G26-6

53612-S10-7

53612-S14-453612-S14-653612-S14-7
53612-S14-853612-S16-653612-S16-7

53612-S26-4

53612-S26-6

53612-S26-7

53612-S26-8

53612-S34-4

53612-S34-6

53612-S34-7

53612-S50-6

68710-543

76177-234

10073456-008LF10073456-062LF10080054-157LF
10087119-006LF10087119-008LF10087119-010LF

10087119-014LF

10087119-016LF

10087119-018LF10087119-020LF10087119-026LF
10087119-030LF10087119-034LF10087119-040LF

10087119-044LF

10087119-050LF

10087119-060LF10087119-064LF10087119-106LF



How to Order

1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
