IDC Connectors Flat Cable 6 Pin Ribbon Cable
- Description
- Contact Supplier Now!
Description

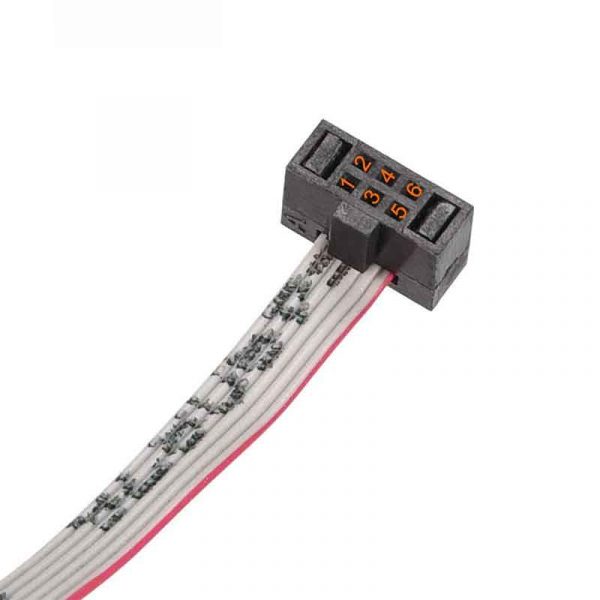

IDC Connectors Flat Cable 6 Pin Ribbon Cable
The 1.27mm pitch 6 Pin Ribbon Cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, medical equipment, instrumentation equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, box cabling, etc.
The cable separates easily for clean terminations with standard wire connectors, jacks and pins. And the ribbon cable saves space and time on circuit interconnecting assemblies.
| Cable | UL2678 30AWG |
| Cable Pitch | PH0.635MM |
| Total Length | 20cm / 7.9inch. |
| Wire Total Width | 3.7mm / 0.15inch |
| Color | Grey, red side |
| Connector Type | IDC female connector |
| Pin Number | 6 Pins |
| Pin Pitch | 1.27mm pitch |
| Withstand Voltage | 300V |
| Insulation Resistance | ≥1000MΩ |
| Contact Resistance | 15mΩ |
| Operating Temperature | -40 ° C ~ + 105 ° C |
| Sample | Available |
| Certified | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
| Delivery Day | 3-15 working days |

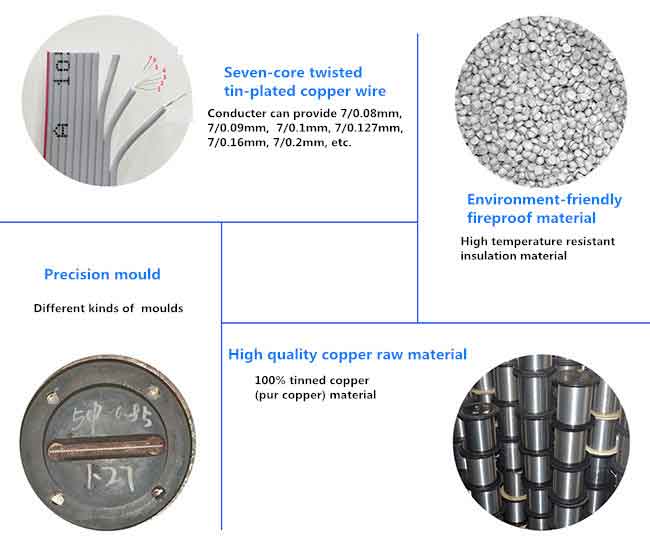

Production Process

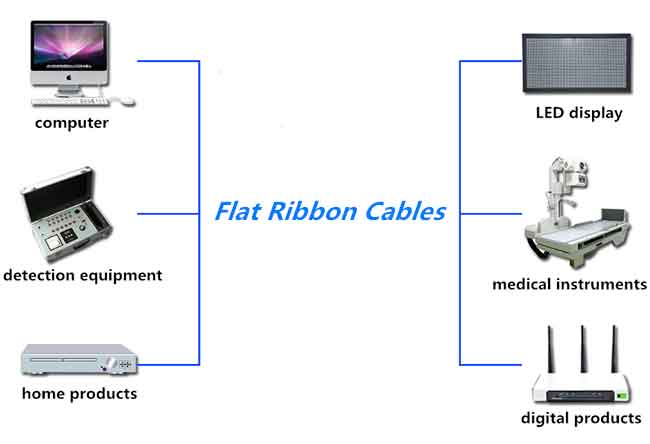

Application
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series

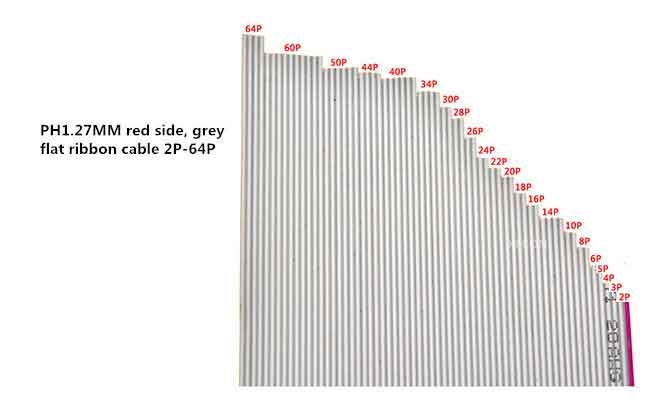

● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More IDC Cable-to-Board Connector System
10087120-130LF | 10087120-134LF | 10087120-140LF | 10087120-144LF |
| 10087120-150LF | 10087120-160LF | 10087120-164LF | 10087120-206LF |
10087120-208LF | 10087120-210LF | 10087120-214LF | 10087120-216LF |
10087120-218LF | 10087120-220LF | 10087120-226LF | 10087120-230LF |
10087120-234LF | 10087120-240LF | 10087120-244LF | 10087120-250LF |
| 10087120-260LF | 10087120-264LF | 10087121-704LF | 10087121-706LF |
10087121-708LF | 10087121-710LF | 10087121-714LF | 10087121-716LF |
10087121-720LF | 10087121-726LF | 10087121-730LF | 10087121-734LF |
10087121-740LF | 10087121-750LF | 10087121-760LF | 10087121-764LF |
| 10087122-704LF | 10087122-706LF | 10087122-708LF | 10087122-710LF |
10087122-714LF | 10087122-716LF | 10087122-726LF | 10087122-730LF |
| 10087122-734LF | 10087122-740LF | 10087122-750LF | 10087122-760LF |
52601-G34-8LF | 52601-S10-801TLF | 52601-S10-805TLF | 10087120-126LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
