1.27mm Flat Ribbon Cable 8 Pin IDC Connector

1.27mm Flat Ribbon Cable 8 Pin IDC Connector

Description

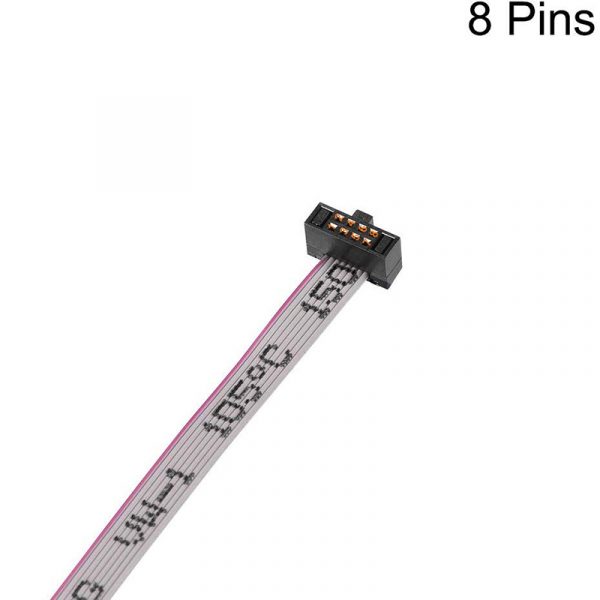

8 Pins 1.27mm Flat Ribbon Cable IDC Female Connector

The 8 Pins 1.27mm Flat Ribbon Cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, medical equipment, instrumentation equipment, computer cabling, hard drives, CD driver, Video Project Devices, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, electronic box cabling, automobiles, digital cameras, etc.



Specifications

Cable UL2651 28AWG
Cable Pitch PH0.635MM
Total Length 20cm / 7.9inch.
Wire Total Width 5.1mm / 0.2inch
Color Grey, red side
Connector Type IDC Female Connector
Pin Number 8 Pins
Pin Pitch 1.27mm pitch
Withstand Voltage 300V
Insulation resistance ≥1000MΩ
Contact resistance 15mΩ
Operating Temperature -40 ° C ~ + 105 ° C
Sample Available
Certified RoHS UL REACH ISO9001
Service OEM ODM Accepted
Test 100% Electrical Test

flat ribbon cable

flat ribbon cable

Production Process

flat ribbon cable



Application

flat ribbon cable

Our Capacity

What kinds of ribbon cable We Can custom:

  • PH2.54 IDC Cable Series
  • PH2.0 IDC Cable Series
  • PH1.27 DIC Cable Series
  • Red IDC DIP Cable Series
  • IDC Connector Series

Custom ribbon cable connectors Capacity:

  • UL 2651 certified gray cable 2-64 P: PH 1.27 mm, 1.0 mm, 0.635 mm;
  • IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
  • DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
  • IDC Gray Cable: Customize any length specification, sample production
  • Rainbow Flat Cable



More WR-DSUB Male IDC with UNC 4-40 Nut

618009226221

618015226221 618025226221

618037226221



More WR-WST REDFIT IDC SKEDD

490107670412

490107670612 490107670812 490107671012 490107671212
490107671412 490107671612 490107671812 490107672012


More WR-DSUB Female IDC w. UNC 4-40 Nut

618009227221

618015227221 618025227221

618037227221



More WR-DSUB Female IDC

618009221923

618015221923 618025221923

618037221923



More WR-BHD 2.54 mm Male IDC Connector w. Ears

61201025921

61201425921 61201625921 61202025921
61202625921 61203425921 61204025921

61205025921


How to Order

Send us your Customized Request — We Quote for you — Creat our Drawings — Send Sample to you — Mass Production
