Description

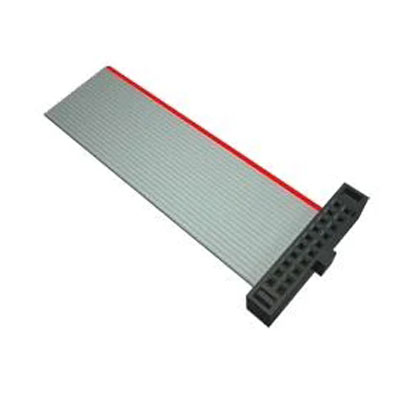

Samtec Flat IDC Ribbon Cable Assembly 30AWG
Samtec Flat IDC Ribbon Cable Assembly provides low .050” (1.27mm) pitch connections and works in a temperature range of -40°C to +105°C. IDC ribbon cables have high performance Tiger Eye™ Contacts, you can choose socket (FFSD) or plug (FFMD) terminals. The flat ribbon cable is 30AWG, with single-ended, double-ended or transmission end (FFMD only) options. The FFSD/FFMD flat IDC ribbon cables mate with .016″ (0.41mm) square post terminal strips.
| Product Name | Samtec Flat IDC Ribbon Cable Assembly |
| Wire Gauge | UL2678 30AWG |
| Cable Length | Custom length |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Connector End A | Socket |
| Connector End B | Socket |
| Connector Pitch | 1.27mm pitch |
| Unit Weight | 0.017355 oz |
| Voltage Rating | 30 V |
| Series | FFSD |
| Brand | Samtec |
| Mfr. # | FFSD-20-D-12.00-01-N |
| Sample | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
| Test | 100% testing inspection |
Production Process
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
● DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
More Flat Ribbon Cables
ISDCB88 | ISDCB81.3 | ISDCB824 | ISDCB8NT4 |
| ISDCB810 | 2324305-1 | 92315-2015 | CABLE-IDC40-15CM |
2294649 | 2302609 | 2322702 | 2321350 |
2321363 | 2299505 | 2900122 | 2302654 |
2900151 | 2900132 | 2302641 | 2900133 |
| 2302599 | 2321376 | 2300818 | 2900138 |
2900139 | 2299495 | 2304157 | 2321334 |
| 2321347 | 2321389 | 2299204 | 2288943 |
2305761 | 2299220 | 2299071 | 2299385 |
| 2299084 | 2305994 | 2288969 | 2299424 |
2298470 | 2300575 | 2299039 | 2318884 |
| 2299107 | 2299042 | 2289036 | 2299440 |
2298522 | 2299123 | 2300559 | 2289573 |
| 2298535 | 2296841 | 2300562 | 2305185 |
2314503 | 2289065 |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
