6 Pin Connector Flat Ribbon Cable UL2651

6 Pin Connector Flat Ribbon Cable UL2651

Description

20cm 1.27mm Flat Ribbon Cable 6 Pin IDC Connector A-type

The 6 Pin 1.27mm Flat Ribbon Cable is widely used in electrical appliances, printer, robotics, PCB board circuits connect, industrial equipment, data/communications equipment, gaming equipment, medical equipment, instrumentation equipment, computer cabling, hard drives, CD driver, DVD Players, backlights panel, car LCD panels, LCD TV Panels, LED displays, automobiles, etc.

Cable UL2651 28AWG
Cable Pitch PH0.635MM

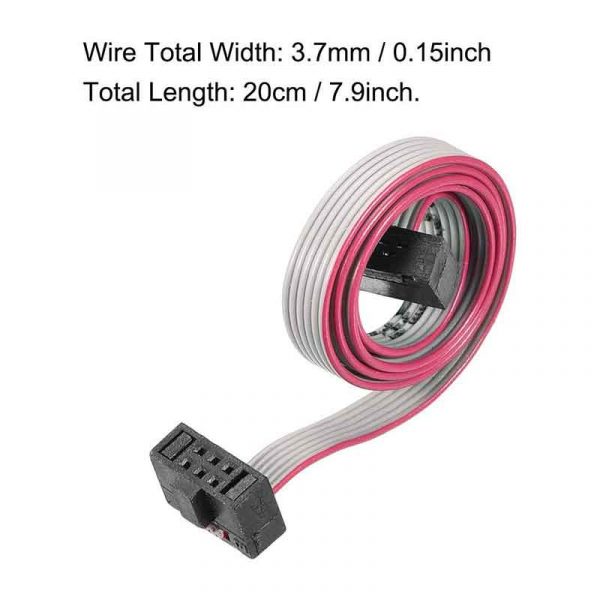

Total Length 20cm / 7.9inch.
Wire Total Width 3.7mm / 0.15inch
Color grey with red edge
Connector Type FC to FC Female , A-type
Pin Number 6 Pin

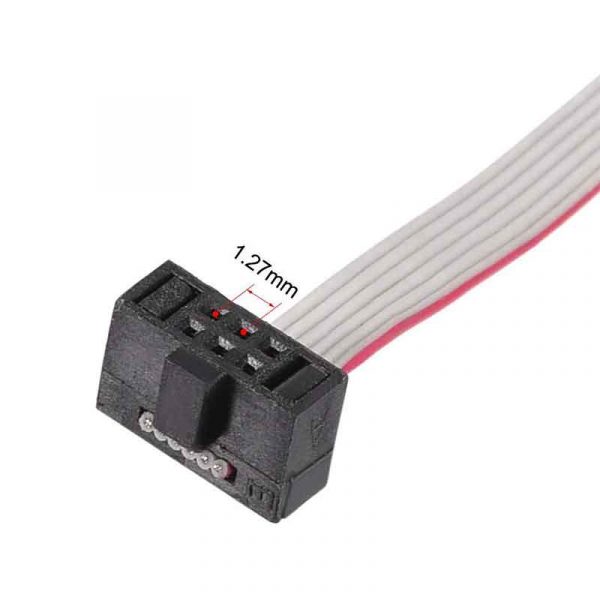

Pin Pitch 1.27mm pitch
Material SORY standard PBT
Rated Current 1Amp
Maximum voltage AC 500V / 1Minute
Insulation resistance 1000mΩ
Contact resistance 15mΩ
Operating Temperature -40 ° C ~ + 105 ° C
Sample Available
Certified Hook Up wire, UL, VDE, CSA
Service OEM ODM Accepted

Production Process



Application

Our Capacity

ECOCABLES manufactures custom various ribbon cable assemblies for customers in many industries. At ECOCABLES, Custom ribbon cable assemblies can include:

What kinds of ribbon cable We Can custom:

  • PH2.54 IDC Cable Series
  • PH2.0 IDC Cable Series
  • PH1.27 DIC Cable Series
  • Red IDC DIP Cable Series
  • IDC Connector Series

Custom ribbon cable connectors Capacity

  • UL 2651 certified gray cable 2-64 P: PH 1.27 mm, 1.0 mm, 0.635 mm;
  • IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
  • DIP Connector Series 6-64 P: 2.54 DIP, 2.0 DIP
  • IDC Gray Cable: Customize any length specification, sample production
  • Rainbow Flat Cable



More REDFIT IDC SKEDD Connectors

490107670412 490107670612 490107670812 490107671012 490107671212
490107671412 490107671612 490107671812 490107672012



More WR-MM Male IDC Connectors

690157000472 690157000672 690157000872 690157001072
690157001272 690157001472 690157001672 690157001872
690157002072 690157002272 690157002472 690157002672



More WR-DSUB Male IDC

618009221823 618015221823 618025221823 618037221823



How to Order
Send us your Customized Request– We Quote for you — Creat our Drawings — Send Sample to you — Mass Production
