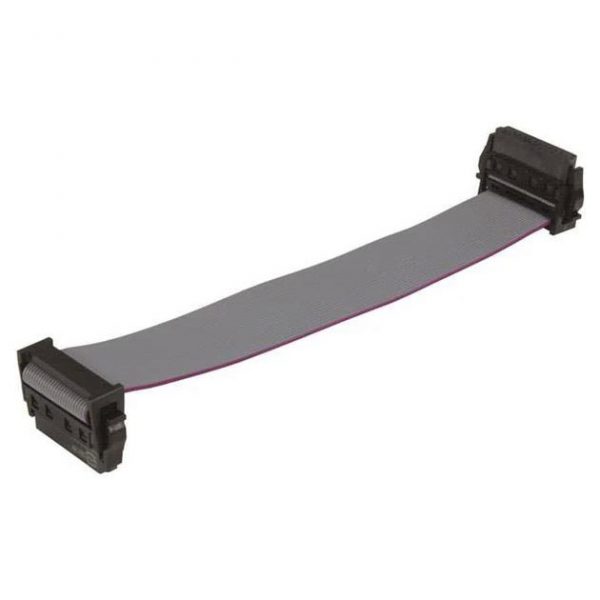

IDC Connector Gray 32 Pin Ribbon Cable

IDC Connector Gray 32 Pin Ribbon Cable

Description

IDC Connector Gray 32 Pin Ribbon Cable

The 1.27mm pitch 32 pin ribbon cable is widely used in electrical appliances, printer, industrial equipment, gaming equipment, medical equipment, instrumentation equipment, hard drives, etc.

Product NameIDC Connector Gray 32 Pin Ribbon Cable
Wire Gauge32 AWG
Cable Length100mm
Jacket MaterialPVC
Connector End AIDC socket
Connector End A Pin Count32position
Connector End BIDC socket
Connector End B Pin Count32 position
GenderFemale / Female
Connector Pitch1.27mm pitch
Unit Weight1 oz
BrandHARTING
Mfr. #33152430100010
SampleAvailable
CertificationUL/VDE/CCC/CE/ROHS/SGS/REACH
ServiceOEM and ODM
Test100% testing inspection

Har-flex® Connectors are based on a 1.27mm grid and offered in six stacking heights, from 1.75mm to 13.65mm. The har-flex connectors with SMT technology allow designers to bridge PCB distances from 8mm to 20mm in mezzanine applications. Featuring high-density contact spacing and pin count configurations ranging from 6 pins to 100 pins in even-numbered positions, the har-flex connectors maximize PCB real estate and achieve overall space savings and cost efficiencies. The robust design includes solder hold-downs to ensure a reliable connection to the PCB. This also helps absorb stress on the solder contacts resulting from insertion and removal forces. Har-flex Connectors provide 100% coplanarity testing and standard fitting with pick-and-place pads that guarantee a simple, fully automatic assembly of the PCBs.

IDC Connector Gray 32 Pin Ribbon Cable

IDC Connector Gray 32 Pin Ribbon Cable

Production Process

IDC Connector Gray 32 Pin Ribbon Cable
