Description

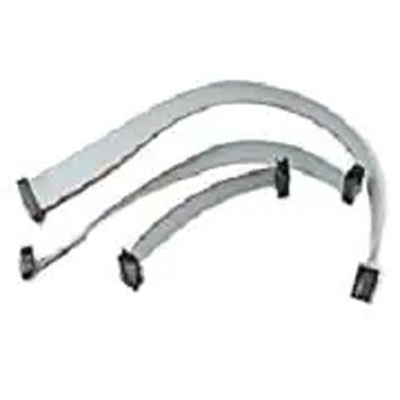

NKK Switches ISDCB8 Ribbon Cable
NKK Switches ISDCB8 Ribbon and IS-SERIAL Cables are used to connect SmartDisplay controllers to logic boards, to a computer, or logic boards to one another. The NKK switches ISDCB8 ribbon cable is 14 conductor cables with 7 x 2 sockets and 100″ pitch. The IS-SERIAL cable is a 6 conductor cable with a 9 pin female serial connector on one end and RJ11 connector on the other. This IS-SERIAL cable connects the SmartDisplay system is connected to the computer through the serial port through the RS232 standard.
| Product Name | NKK Switches ISDCB8 Ribbon Cable |
| Wire Gauge | 28 AWG |
| Cable Length | 8 in |
| Jacket Material | PVC |
| Connector End A | IDC socket |
| Connector End A Pin Count | 14 position |
| Connector End B | Socket |
| Connector End B Pin Count | 14 position |
| Type | Logic Board Cable |
| Connector Pitch | 2.54mm pitch |
| Unit Weight | 11.688 g |
| Brand | NKK Switches |
| Mfr. # | ISDCB88 |
| Sample | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
| Test | 100% testing inspection |
Production Process
Our Capacity
Custom Ribbon Cable Types：
● PH2.54 IDC Cable Series
● PH2.0 IDC Cable Series
● PH1.27 IDC Cable Series
● Gray/Rainbow/Red/Yellow IDC DIP Cable Series
● … …
Custom Ribbon Cable Connectors：
● DIP/IDC Connector Series 6-64P: 2.54 IDC, 2.0 IDC, 1.27 IDC
