20 Pin Ribbon Cable
- Description
- Contact Supplier Now!
Description
20 Pin Ribbon Cable 20 Pin Flat Ribbon Cable
ECOCABLES 20 pin ribbon cable products are rugged and can be easily connected multiple times using color-coded wires.
20 pin flat ribbon cables save space and time for circuit interconnection components.
Suitable for digital cameras, digital camcorders, laptops, LCD TVS, LCD monitors or 3D printer extensions, connecting circuit boards, leds, lights, computers.
Specifications
| Cable | 24-28AWG |
| Cable pitch | 1.00mm, 0.635mm 1.27mm 2.0mm 2.54mm allowed |
| Copper core conductor | 7/0.12mm {other: 7/0.08mm 7/0.09mm 7/0.1mm 7/0.16mm 7/0.2mm (7 is 7 copper wire)} |
| Cable color | Grey with red edge or rainbow or customized |
| Connector type | 2×10 20 pin ribbon male/female connector |
| Connector pitch | 1.27MM 2MM 2.54MM |
| Conductor resistance | Max:237Ω/KM 20°C |
| Insulation Resistance | Min:100M /KM 20°C |
| Working temperature | -20°C~+105°C or special requirements can be customized according to customer requirements |
| Rated voltage | 300V |
| Application | Computer, power transfer, electronics, communication data transfer |
| Sample | Allowed |
| OEM | Support |
More Connectors
 |  |  |  |
Black IDC connector – 20P | Gray IDC connector – 20P | Black IDC butterfly buckle connector – 20P | Black DIP connector – 20P |
 |  |  |  |

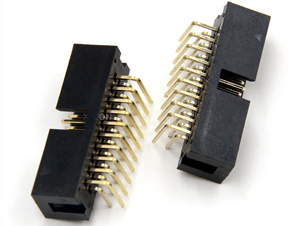

| 90° box header connector – 20P | 180° box header connector – 20P | Red DIP (AMP215570 series) connector – 20P | Red IDC (AMP215083 series) connector – 20P |
 |  |  | … … |

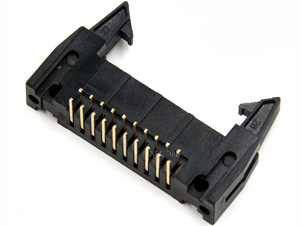

| 90° ejector header connector – 20P | 180° ejector header connector – 20P | Black CE connector – 20P | … … |
 |  |  |
| Gray IDC ribbon cable – 20P | Gray butterfly buckle ribbon cable – 20P | Gray M/F ribbon cable – 20P |
 |  |  |
| Rainbow IDC ribbon cable – 20P | IDC ribbon cable – 20P | 1.27*2.54HFC ribbon cable – 20P |
Features
| More Stable Signal Transmission Better Performance |  |
 | Higher Equipment Reliability Long Service Life |
| Easy To Install, Not Easy To Damage Pitch Choose: 1.27mm/2.0mm/2.54mm |  |
