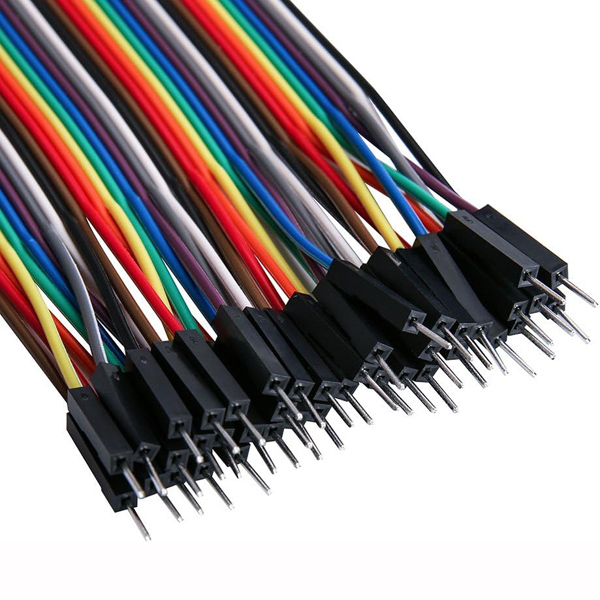

Dupont Ribbon Cable
- Description
- Contact Supplier Now!
Description
Multicolored Wire Breadboard Jumper Dupont Ribbon Cable Kit Compatible with Arduino Projects
Dupont ribbon cable can be separated to form an assembly containing the number of wires you require for your connection and to support non-standard odd-spaced headers
Specifications
| Cable | UL2651 28AWG cable |
| Cable 1 | 40-pin male to female jumper wires |
| Cable 2 | 40-pin male to male jumper wires |
| Cable 3 | 40-pin female to female jumper wires |
| Cable | Multicolored |
| Connector | Dupont connector |
| Material | Copper-clad aluminum, PVC |
| Number of Cable Strands | Single strand |
| Current Rating (per Wire) | 1A |
| Withstand Voltage | 300V |
| Contact Resistance | 15mΩ |
| Operating Temperature Range | -20°C to +105°C |
| Application | Available |
| Certification | UL/VDE/CCC/CE/ROHS/SGS/REACH |
| Service | OEM and ODM |
Production Process
Application
Our Capacity
Custom Ribbon Cable Types：
ROHS REACH cable
UL2651 28AWG 26AWG PH:1.27MM PH:1.0MM 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 18P 20P 24P 26P 30P 34P 37P 40P 50P 60P 64P
UL2678 30AWG Pitch:0.635MM 10P 12P 14P 16P 20P 24P 26P 30P 34P 40P 50P
Custom Ribbon Cable Connectors：
1.27*1.27IDC, 1.27*2.54IDC, 2.0IDC, 2.54IDC DIP, CE, butterfly buckle, bull horn… …
More IDC Cable-to-Board Connector Systems
71600-264LF | 71600-306LF | 71600-308LF | 71600-310LF |
71600-314LF | 71600-316LF | 71600-318LF | 71600-320LF |
| 71600-324LF | 71600-326LF | 71600-330LF | 71600-334LF |
71600-340LF | 71600-344LF | 71600-350LF | 71600-360LF |
| 71600-364LF | 71600-404LF | 71600-404LF | 71600-406LF |
71600-408LF | 71600-410LF | 71600-414LF | 71600-416LF |
71600-418LF | 71600-420LF | 71600-424LF | 71600-426LF |
71600-430LF | 71600-434LF | 71600-440LF | 71600-444LF |
71600-450LF | 71600-460LF | 71600-464LF | 71600-506LF |
| 71600-516LF | 71600-604LF | 71600-606LF | 71600-608LF |
How to Order
1. Talk to us about your ribbon cable – 2. You (or our engineer) provide drawing – 3. Confirm drawing – 4. Quote – 5. Sample built – 6. Sample approved – 7. Payment – 8. Mass production – 9. Test before shipment – 10. Delivery
